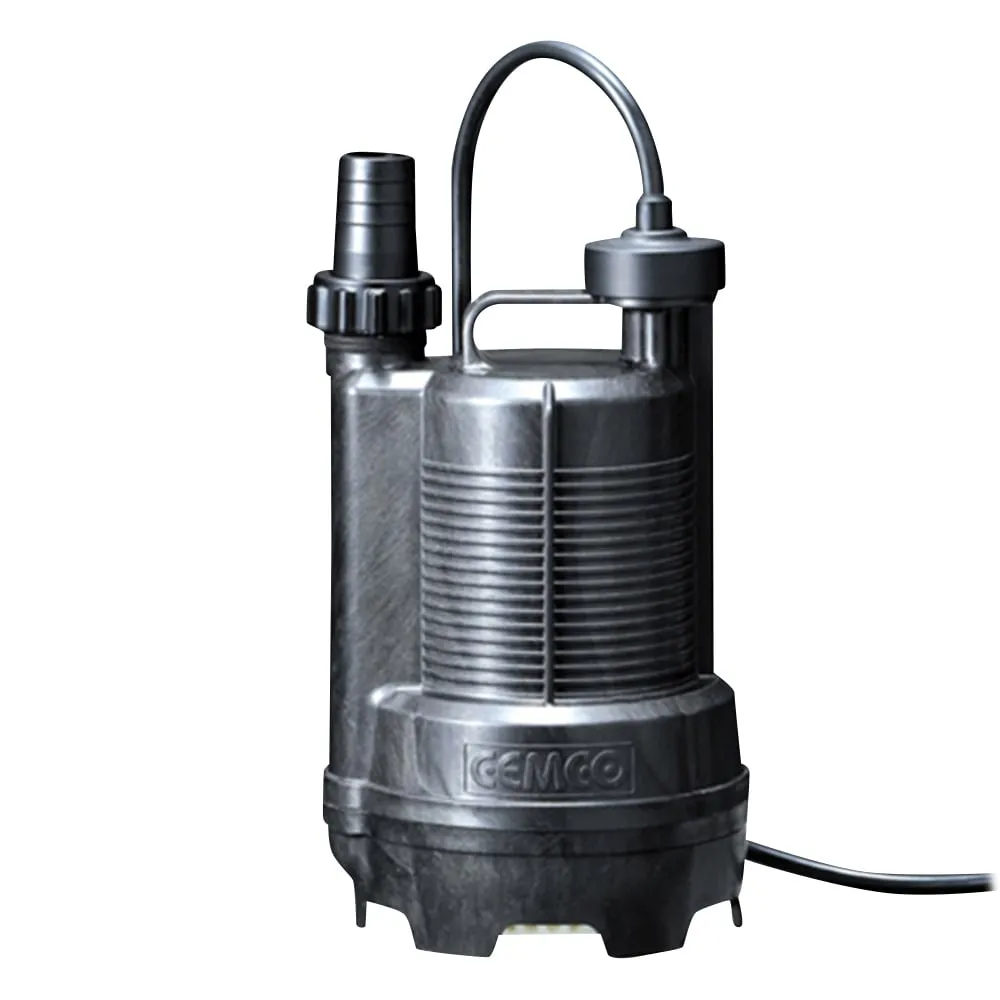

2-3297-01 Submersible Pump CCP-200S-5C 50Hz CCP-200S-5C
model:
2-3297-01
category:
laboratoryinstruments
Product Description
Product Model: 2-3297-01 Features Since the welding par […]
Contact Us
Product Details
Product Model: 2-3297-01
Features
- Since the welding part is made of high corrosion resistant resin, it can also be ***d to transfer chemical liquids (organic solvents are not allowed). (In case of acidic liquid transfer, the hose band material must be changed.).
- Demonstrated excellent ability to transfer chemical solutions.
- The lightweight body of 4.8 kg makes it easy to carry.
- Built-in thermal protector prevents burning of the motor.
Spec
- Model number: CCP-200S (50Hz)
- Liquid junction material Impeller, casing, motor case/CFRPP (carbon fiber reinforced polypropylene), Mechanical seal/ceramic, carbon, Main axis, bis, nut/GFRPPS, Packing/FKM
- Maximum head: 7.4m (discharge quantity 0L/min)
- Connection: Hose/φ32mm, Tube/G1 1/4
- Cord length: 4m
- Power supply: Single phase 100V 200W
- Weight: 4.8kg
- Size: 162 x 152 x 264mm
- Discharge quantity: 120L/min
- Accessories: Hose bamboo shoot, union nut (made of PP), Packing (FKM), Lifting rope 5m (made of PE), Hose band (made of Stainless Steel (SUS316)), Nameplate seal on the ground
