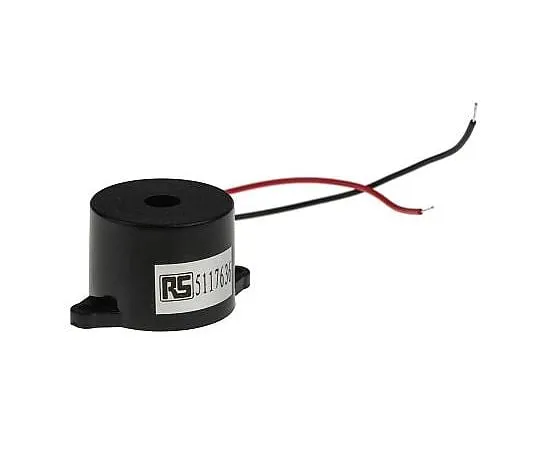

63-2999-42 RS PRO 3 → 16 V dc 90dB Panel Mount Continuous Internal Piezo Buzzer 511-7636
Electronic/Electrical Parts and Controll Equipments

63-2999-42 RS PRO 3 → 16 V dc 90dB Panel Mount Continuous Internal Piezo Buzzer 511-7636

model: 63-2999-42
brand: RS PRO

Product Description

Product Model: 63-2999-42Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-2999-42
Product Brand: RS PRO

Features

  • Flanged continuous tone buzzer flying lead. Flanged mounting buzzer Flying lead connections High output levels Internal circuitry for dc operation

Spec

  • Quantity:1piece
  • Mounting Type : Panel Mount
  • Minimum Supply Voltage : 3V dc
  • Maximum Supply Voltage : 16V dc
  • Sound Level : 90dB
  • Drive Type : Internal
  • Tone Type : Continuous
  • Diameter : 23mm
  • Length : 33mm
  • Height : 17mm
  • Dimensions : 33 x 23 x 17mm
  • Minimum Operating Temperature : -20°C
  • Maximum Operating Temperature : +60°C
  • Maximum Frequency : 4.2kHz
  • Supply Current : 8mA
  • CODE No.:511-7636
