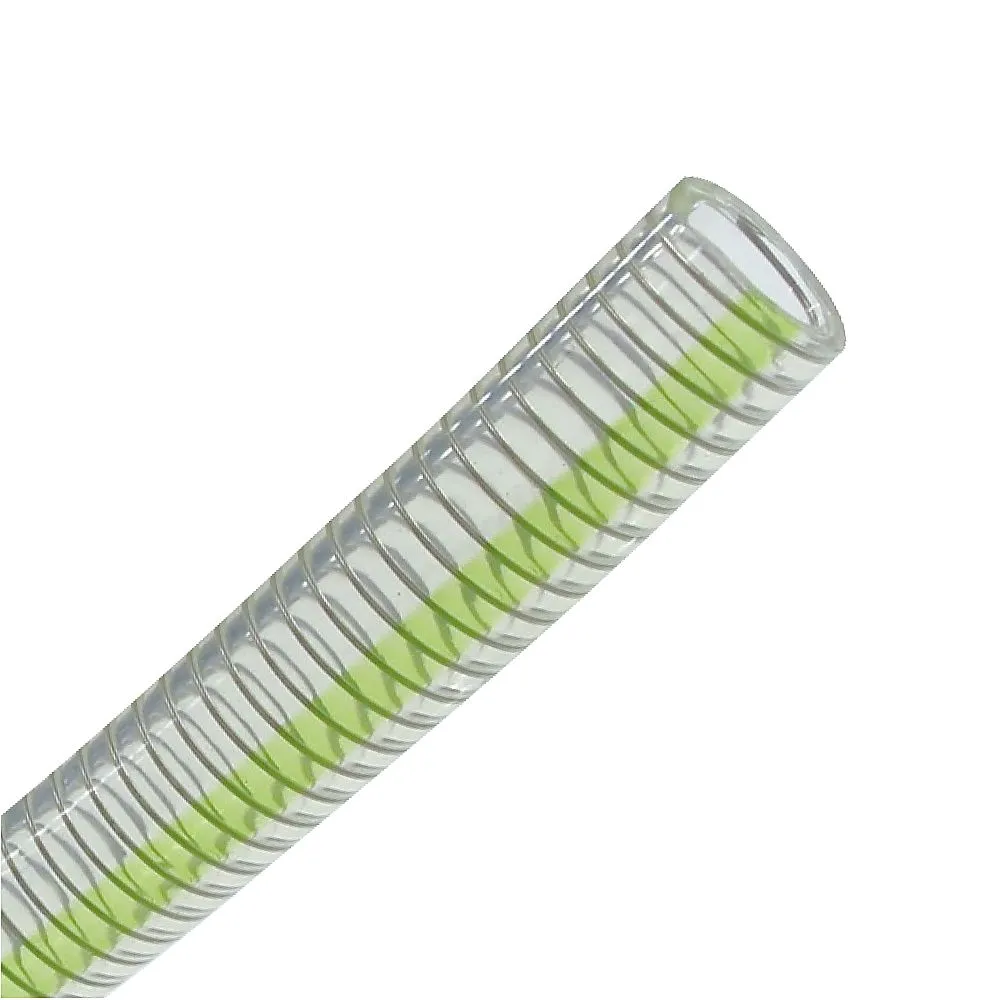

65-2794-56 Toyo Fluorine Soft S Hose FFYS-19-1
Product Description
Product Model: 65-2794-56Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-2794-56
Product Brand: TOYOX CO., LTD.
Features
- Fluorine hose for transport and suction of cosmetics, fats and oils, food, liquor, perfumes, etc. "Tetrafluorinated fluororesin": Uses tetrafluorinated fluororesin (modified ETFE) on the inner surface of the hose. Utilizing features such as chemical resistance, non-elution, non-adhesion, and low odor, it can be ***d as a hose for all types of piping by pressure feeding and suction (vacuum).
- "Flexibility": Soft and flexible (compared to our company products) as it can b*** with up to -50% more force than conventional fluorine spring hoses.
- "Cleanability": Excellent non-adhesion and water repellency, so fluid does not remain in the hose and cleaning is easy.
- "Coloring and perfumery": Water repellent, does not easily color inside the hose, and prevents odor from being transferred to food and beverages.
- Transparency: High transparency and dirt resistance on the inside of the hose allows fluid to be identified.
- Compliance with the Food Sanitation Act, FDA registration, RoHS2 compliance (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 19 x 26
- Pressure (Mpa): -0.1 to 0.2
- Operating temperature range: -5 °C to 70 °C
- Length: 1 m
- Material: Body/Quaternary Fluorine Plastic/SUS316
- Minimum b***ing radius: 60 mm
