65-2322-74 Strainer (Inline Strainer) 1/4 Female 40 Mesh STR-VRC14S40-EP
automaticdiluter

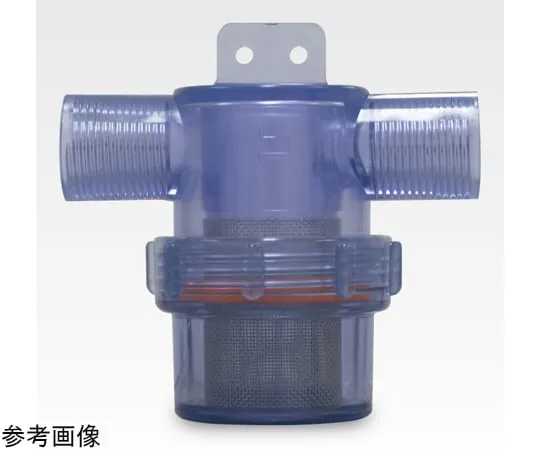

65-2322-74 Strainer (Inline Strainer) 1/4 Female 40 Mesh STR-VRC14S40-EP

model: 65-2322-74
brand: ARAM Corporation
category: automaticdiluter

Product Description

Product Model: 65-2322-74Product Brand: ARAM Corporatio […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 65-2322-74
Product Brand: ARAM Corporation

Features

  • Lightweight in-line trainer whose body is made of resin
  • It can easily separate and remove foreign matter and dust mixed with the liquid in the piping.
  • When cleaning the mesh, it is better to *** [Maintenance Cup STR-MC HDPE] (65-2322-76) sold separately.
  • It can easily separate and remove foreign matter and dust flowing in piping.
  • Recomm***ed for preventing foreign matter bite in the discharge pump.
  • Made of resin, lightweight, and compact design with palm size.
  • Since the body material is made of transparent PVC, it has excellent chemical resistance, and the clogging condition of the mesh can be easily monitored.
  • A fixing part is provided on the upper part of the main body for easy installation in the equipment.
  • Made in Japan with high quality and stable supply, you can *** it with confidence.
  • SUS filter is installed as standard on the body.
  • It can easily separate and remove foreign matter and dust mixed with the liquid in the piping.
  • Recomm***ed for preventing foreign matter bite in the discharge pump.
  • *Lightly tighten the bowl part and tighten it by 45° (1/8 turn) from the position where it stopped before ***.
  • *Periodically monitor the clogging condition of the mesh and clean it as necessary.

Spec

  • Body/Bowl: Clear PVC (PVC)
  • Mesh fineness: 40 mesh
  • Mesh Material: SUS304/HDPE Frame
  • Packing Material: EPDM
  • Working pressure (kPa): 750 kPa or less
  • Total Height Size (mm) (When Mounted): 74
  • Maximum width dimension (mm): 77
  • Female Screw Standards: Female Screw PT1/4
  • Upper Mounting Hole Dimensions (φ): Approx. 3.3 (Pitch 10 mm x 2 Locations)
