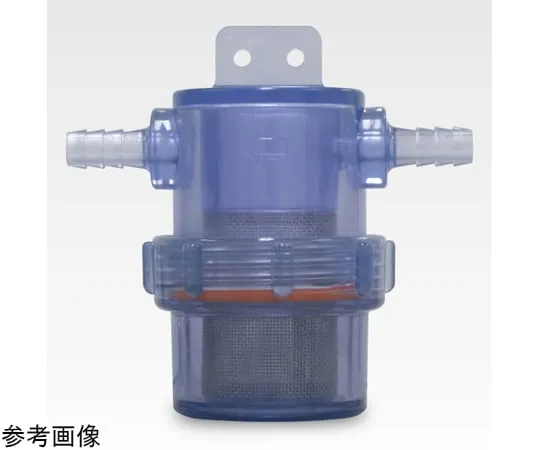

65-2322-68 Strainer (Inline Strainer) φ6 40 Mesh STR-V06S40-EP
Product Description
Product Model: 65-2322-68Product Brand: ARAM Corporatio […]
Contact Us
Product Details
Product Model: 65-2322-68
Product Brand: ARAM Corporation
Features
- Lightweight in-line trainer whose body is made of resin
- It can easily separate and remove foreign matter and dust mixed with the liquid in the piping.
- Recomm***ed for preventing foreign matter bite in the discharge pump.
- When cleaning the mesh, it is better to *** [Maintenance Cup STR-MC HDPE] (65-2322-76) sold separately.
- It can easily separate and remove foreign matter and dust flowing in piping.
- Made of resin, lightweight, and compact design with palm size.
- Since the body material is made of transparent PVC, it has excellent chemical resistance, and the clogging condition of the mesh can be easily monitored.
- A fixing part is provided on the upper part of the main body for easy installation in the equipment.
- Made in Japan with high quality and stable supply, you can *** it with confidence.
- SUS filter is installed as standard on the body.
- It can easily separate and remove foreign matter and dust mixed with the liquid in the piping.
- Recomm***ed for preventing foreign matter bite in the discharge pump.
- *Lightly tighten the bowl part and tighten it by 45° (1/8 turn) from the position where it stopped before ***.
- *Periodically monitor the clogging condition of the mesh and clean it as necessary.
Spec
- Body/Bowl: Clear PVC (PVC)
- Mesh fineness: 40 mesh
- Mesh Material: SUS304/HDPE Frame
- Packing Material: EPDM
- Working pressure (kPa): 600 kPa or less
- Total Height Size (mm) (When Mounted): 74
- Maximum width dimension (mm): 77
- Applicable Tube Approximate Inner Diameter (φ): 6φ
- Upper Mounting Hole Dimensions (φ): Approx. 3.3 (Pitch 10 mm x 2 Locations)
