Spec

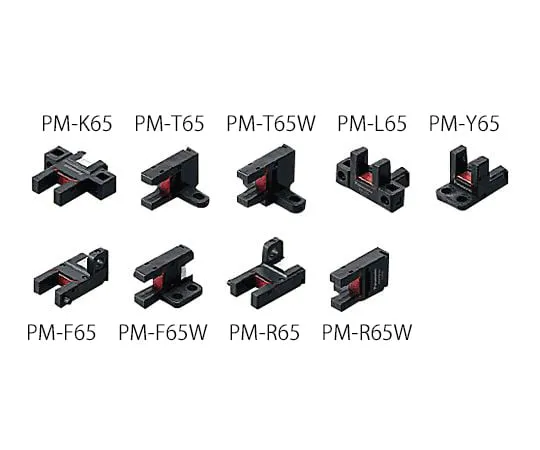

• Type: PM-K65
• Output: NPN
• Output: Maximum input current/50 mA, applied voltage/DC 30 V or less (Output to 0 V), residual voltage/2 V or less (Inflow current at 50 mA), 1 V or less (Inflow current at 16 mA)
• Detection distance : 6 mm (Fixed)
• Minimum detection object: 0.8 x 1.2 mm opaque body
• Oza (hysteresis): 0.05 mm or less
• Repeating accuracy: 0.01 mm or less
• Power supply voltage : DC5 to 24 V ± 10% (Ripple P-P 10% or less)
• Current consumption: 15 mA or less
• Output operation: ON when entering light/ON when shading (2 output equipment)
• Response time: light input/20 μs or less, light shielding/80 μs or less
• Diff***r element: Red external LED (Emission peak wavelength: 855 nm, unmodulated)
• Material: Case/PBT, Display/Polycarbonate
• Weight: Main unit/about 3 g
• Quantity: 1 piece
