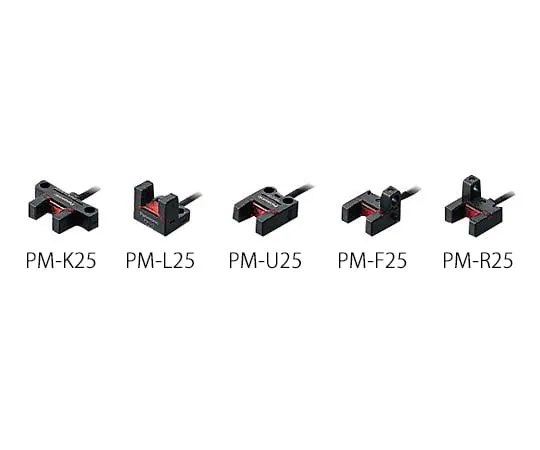

4-170-01 Micro Photo Sensor (Ultra-Compact, Cable Type) PM-K25-P
Product Description
Product Model: 4-170-01Product Brand: Panasonic Corpora […]
Contact Us
Product Details
Product Model: 4-170-01
Product Brand: Panasonic Corporation
Features
- Beca*** of the integrated molding method, the structure does not allow grooves or gaps on the detection surface or body to reduce breakdowns ca***d by water splashes or dust.
- The vertical position of the optical axis can be checked from the front and back, left and right, making it easy to adjust the position of the detected object.
- It is equipped with a large operation indicator light (orange) that can be viewed not only from above but also from directly beside it.
- Can be easily installed with one or two M3 screws.
Spec
- Type: PM-K25-P
- Output: NPN
- Cable length: 3 m
- Output: Maximum input current/50 mA, applied voltage/DC 30 V or less (Output to 0 V), residual voltage/2 V or less (Inflow current at 50 mA), 1 V or less (Inflow current at 16 mA)
- Detection distance : 6 mm (Fixed)
- Minimum detection object: 0.8 x 1.2 mm opaque body
- Oza (hysteresis): 0.05 mm or less
- Repeating accuracy: 0.01 mm or less
- Power supply voltage : DC5 to 24 V ± 10% (Ripple P-P 10% or less)
- Current consumption: 15 mA or less
- Output operation: ON when entering light/ON when shading (2 output equipment)
- Response time: light input/20 μs or less, light shielding/80 μs or less
- Diff***r element: Red external LED (Emission peak wavelength: 855 nm, unmodulated)
- dust control waterproofing : IP 64 (IEC)
- Material: Case/PBT, Display/Polycarbonate
- Weight: about 30 g
- Quantity: 1 piece
