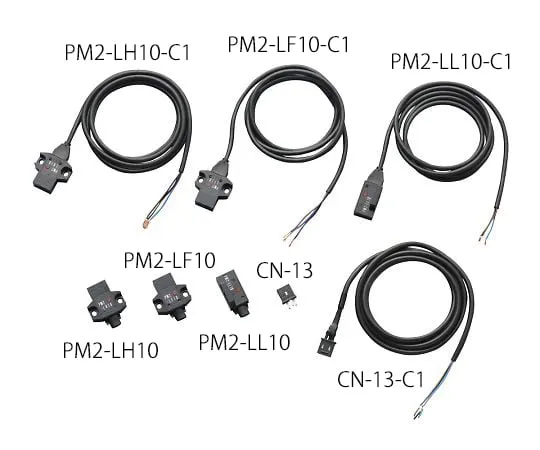

4-159-01 Micro Photo Sensor (Limited Reflection Type, Built-In Amplifier) Cable Type PM2-LH10-C1
Product Description
Product Model: 4-159-01Product Brand: Panasonic Corpora […]
Contact Us
Product Details
Product Model: 4-159-01
Product Brand: Panasonic Corporation
Features
- Beca*** of the limited reflection type that detects a limited distance space, stable detection characteristics are obtained.
- Specular objects do not affect detection as long as they are at least 30 mm away from the detection plane.
- With high sensitivity, it can detect copper wires of φ0.05 mm and dark workpieces with poor reflectivity.
Spec
- Specification: Cable
- Type: Head on
- Output operation: ON when entering light
- Detection distance : 2.5 to 8 mm (Center 5 mm･15 x 15 mm White Unglazed Paper)
- hysteresis (hysteresis): 20% or less of the operating distance (15 x 15 mm White Non-glossy Paper)
- Repeating precision (direction perp***icular to the detection axis): 0.08 mm or less (Setting distance: 5 mm, 15 x 15 mm White Non-glossy paper)
- Power supply voltage : DC5 to 24 V ± 10% (Ripple P-P 5% or less)
- Current consumption: average/25 mA or less, peak/80 mA or less
- Output: NPN transistor open collector
- Maximum output current: 100 mA
- Output applied voltage: DC 30 V or less (Output to 0 V)
- Output residual voltage: 1 V or less (Inflow current at 100 mA), 0.4 V or less (At an inflow current of 16 mA)
- Diff***r element: Red external LED (Emission peak wavelength: 880 nm, modulation type)
- Material: case/polycarbonate, cable fixing/PBT
- Cable: 0.2 mm2, 3 wires, 1 meter
