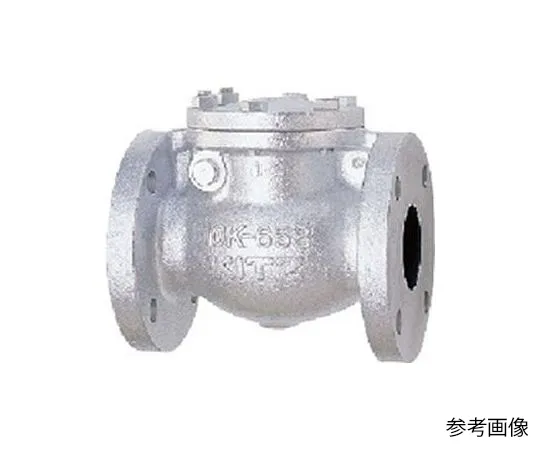

65-1886-80 Cast Iron JIS Standards Swing Chucking Valve (10 FCOS) Nominal Diameter 40 mm 10FCOS40A
Product Description
Product Model: 65-1886-80Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1886-80
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 40
- Nominal diameter (inches): 1 _ 1/2
- Dimensions Between Men (mm): 190.0
- Pressure: 10 K
- Connection: Flange: JIS B 2239 10 K
- Main unit material: FC 200
- Zisk material: SUS 403: 40 A to 100 AFC 200: 125 A to 350 A
- Body Seat Ring material: SCS 1: 40 A to 100 ASUS 403: 125 A to 350 A
- Securities Code: 030210FCOS0040
