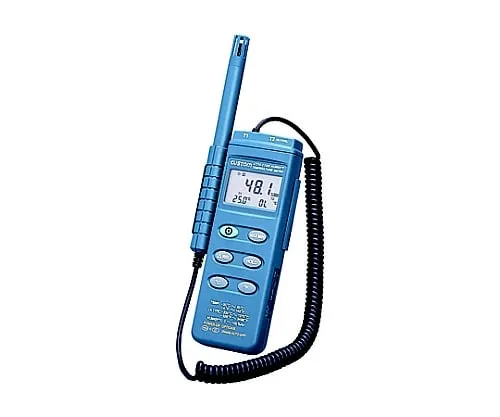

61-0003-56-20 Digital Thermo-HygroMeter with Calibration Certificate CTH-1100
Product Description
Product Model: 61-0003-56-20Product Brand: CUSTOM corpo […]
Contact Us
Product Details
Product Model: 61-0003-56-20
Product Brand: CUSTOM corporation
Features
- Dual display of temperature and humidity.
- Temperature can be measured with the internal sensor and an external thermocouple sensor (sold separately).
Spec
- Sensor type: T1 built-in temperature/thermistor, humidity/polymer capacitance sensor, T2 external temperature/K type thermocouple
- Measuring range: T1 internal temperature/-20 to + 60 degrees C, humidity/5 ~ 95% RH, T2 external temperature/-200 to + 1370 degrees C
- Resolution: T1 internal temperature/0.1 deg C, humidity/0.1% RH, T2 external temperature/0.1 deg C (-200 to + 199.9 deg C), 1 deg C (other than left)
- Accuracy of measurement: T1 internal temperature/+/- 0.7 degrees C, humidity/+/- 2.5% RH (at 25 degrees C), T2 external temperature/+/- (0.3% rdg + 1 degrees C) (-200 to + 199.9 degrees C)
- Sampling: 1 time/2 seconds
- Operating temperature and humidity: 0 to + 50 degrees C, below 90% RH (However, no condensation)
- Storage temperature and humidity: -10 to + 60 degrees C, below 80% RH (However, no condensation)
- Power supply: 1 x 9-volt dry cell
- Battery life: About 100 hours
- Size: Body/W 64 x H 186 x D 30 mm, Sensor/phi 15 x 190 mm, Cord length/About 1.8 m
- Weight: approximately 335 g
- Accessories: Carrying case
- Optional: Select from AC adapter VSM -932 K, USB interface kit (Windows XP) SE -310 U, K-type thermocouple sensor LK series
- Calibration points are 1 point at a temperature of 25 degrees Celsius. If you would like additional points, please contact us separately.
