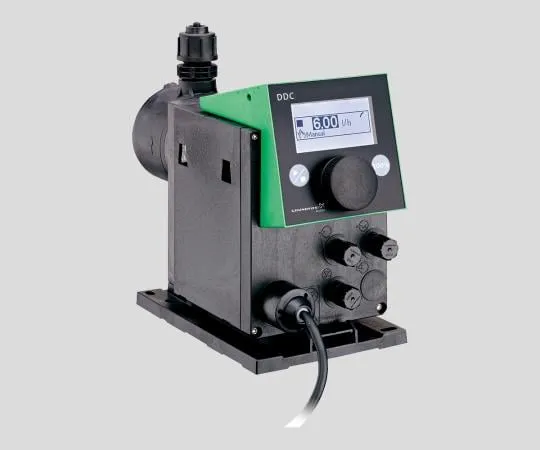

2-062-01 Pump DDC6-10AR-PP/E
Product Description
Product Model: 2-062-01Product Brand: Grundfos Pumps K. […]
Contact Us
Product Details
Product Model: 2-062-01
Product Brand: Grundfos Pumps K. K.
Features
- Uses a variable speed stepping motor for smooth and continuous quantitative injection.
- The menu screen is available in more than 20 languages.
- Click wheel (rotary push knob) and intuitive and easy to understand menu make handling easy.
- You can easily change the position of the control section to the left and right sides of the pump.
Spec
- Operation mode: Manual control, External pulse control, External analog signal control (0/4 - 20mA)
- Maximum liquid temperature: 45℃ (ambient temperature range: 0 - 45℃)
- Maximum viscosity: 50mPas (DDC15-4 is 300mPas)
- Liquid junction material Pump head/PP, Diaphragm/PTFE, Gasket/EPDM (E type), FKM (V type), Ball/ceramic
- Flow rate adjustment ratio/repeat injection accuracy: 1: 1000/+/- 1%
- Power supply: 100 - 240VAC
- Power cable length: 1.5m (without plug)
- Size: 120 x 280 x 200.8mm
- Waterproof, dustproof structure: IP65
- Maximum flow rate, discharge pressure: 6L/h, 10bar
- Model number: DDC6-10AR-PP/E
