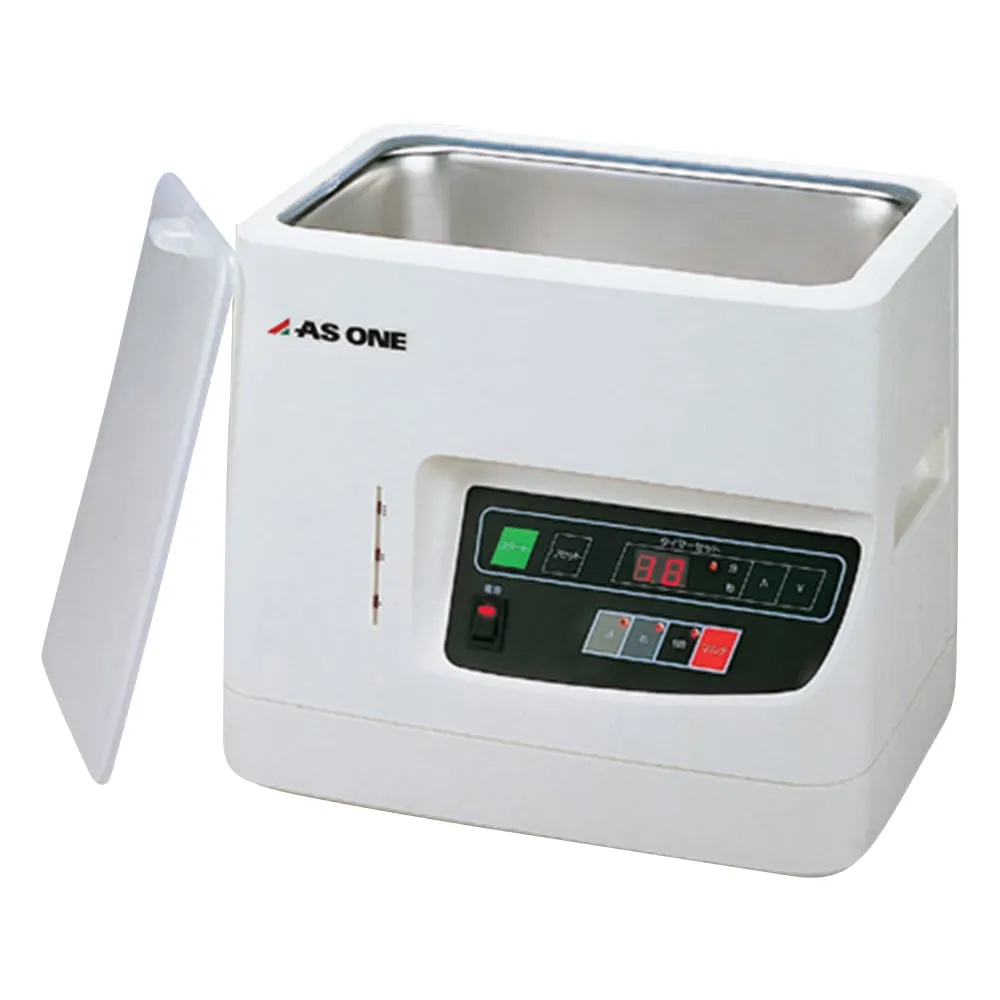

7-5345-01-22 3 Frequency Ultrasonic Cleaner 290 x 208 x 245 mm (Body) with Pre-shipment Inspection Document VS-100
Product Description
Product Model: 7-5345-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 7-5345-01-22
Product Brand: AS ONE Corporation
Features
- A multi-frequency vibrator that eliminates uneven cleaning by alternating oscillation of 3 low (28 kHz), medium (45 kHz) and high (100 kHz) waves with a timer.
- By optionally setting the cleaning time for each single frequency, it is possible to perform cleaning corresponding to the object to be cleaned.
Spec
- External Dimensions (mm): 290 x 208 x 245
- Tank Inner Dimension (mm): 240 x 140 x 100
- Frequency: 28, 45, 100 kHz
- Output: 100 W
- Vibrator: Special Bolted Langevin Vibrator
- Power: 100 VAC 50/60Hz 200VA
- Body Material: Body, Lid/PP (Polypropylene), Washing Tank/Stainless Steel (SUS304)
- Maximum Capacity: Approx. 3 L
- Weight: 4.4 kg
- Drain Valve: 3/8 Inch Ball Valve
- Drain Nipple: Inner Diameter/φ6 mm, Outer Diameter/φ10.5 mm, Tip Protrusion/φ12.5 mm
- Power Cord Length: 2kLP Inlet Type (2P Adapter Included)
- Operation Control: Single-Frequency or 3-Frequency Sequential Switching Oscillation (Built-in Operation Program Backup Function)/Total Time: 1 to 30 Minutes (Setting in Minutes)/3-Frequency Cleaning Time: 1 to 99 Seconds (Optional Setting in Seconds for Each Frequency)
- Attached to "Application for Permission of Radio Frequency Utilization Equipment"
- Accessory: Lid
