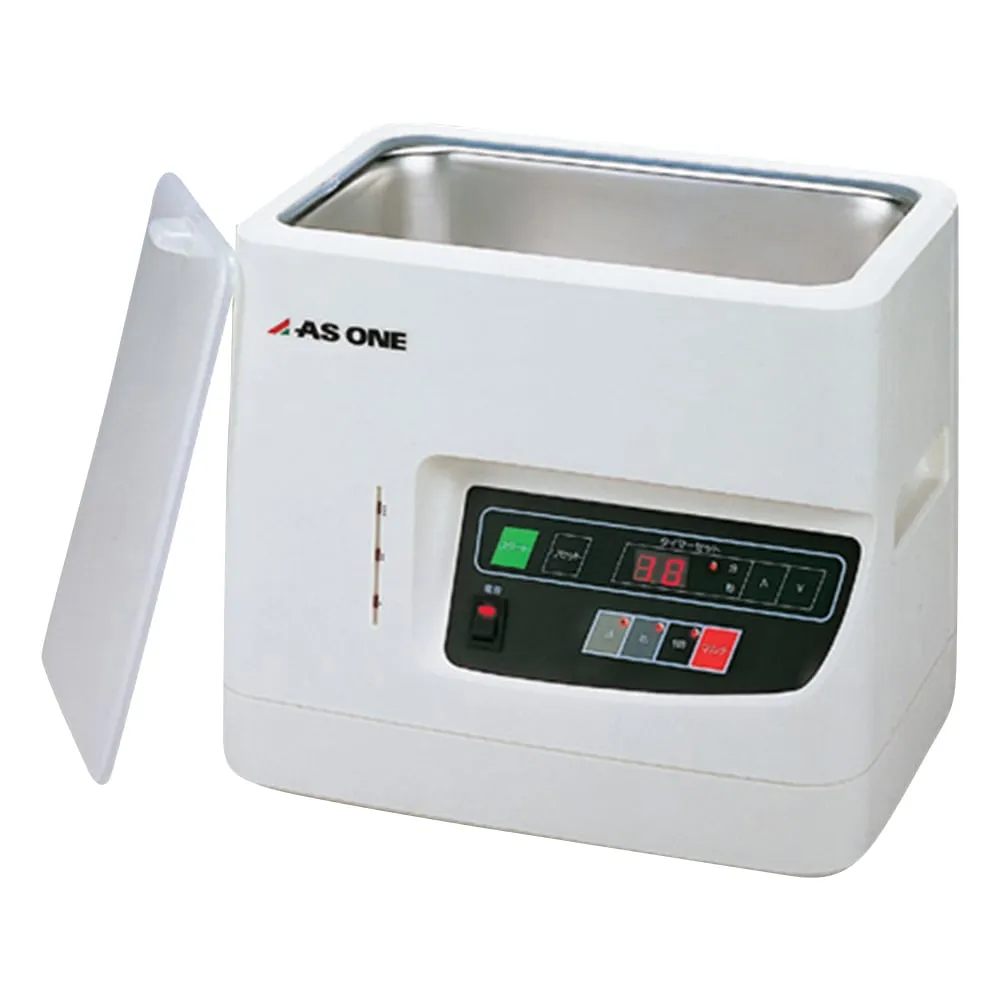

7-5345-01 Three Frequency Ultrasonic Cleaner 290 x 208 x 245mm VS VS-100III (Body) VS-100
Product Description
Product Model: 7-5345-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 7-5345-01
Product Brand: AS ONE Corporation
Features
- With a multi-frequency oscillator, 3 waves of low (28 kHz), medium (45 kHz) and high (100 kHz) are alternately oscillated by a timer to eliminate cleaning irregularities.
- By arbitrarily setting the washing time for each single frequency, it is possible to wash corresponding to the object to be washed.
Spec
- Model number: VS-100-III
- external dimension (mm): 290 x 208 x 245
- tank inner size (mm): 240 x 140 x 100
- Frequency: 28, 45, 100 kHz
- Output: 100 W
- Vibration: Special bolt tightening Langevin vibrator
- power supply: AC100V 50 / 60Hz 200 VA
- main body material: Main unit, Lid / PP (polypropylene), washing tank / stainless steel (SUS304)
- Maximum capacity: approx. 3L
- Weight: 4.4 kg
- Drainage valve: 3/8 inch ball valve
- Water nipple: inner diameter / φ6 mm, outer diameter / φ 10.5 mm, tip projection / φ 12.5 mm
- power cord length: 2kLP inlet type (With 2P Adapter)
- Operation control: Single frequency or 3 frequency sequential switching oscillation (Operation program backup capability) / total time: 1 to 30 minutes (unit setting) / 3 frequency cleaning time: 1 to 99 seconds (Optional for each frequency in seconds)
- "Application for High Frequency Utilization Facility Permission" attached
- Accessories: Lid
