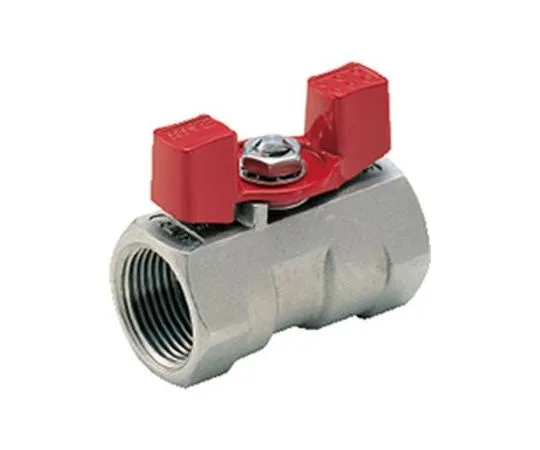

65-1884-23 Ball Valve (UTKW) Nominal Diameter 8 mm UTKW8A
Product Description
Product Model: 65-1884-23Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1884-23
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 8
- Nominal diameter (inches): 1/4
- Dimensions Between Men (mm): 39.0
- Pressure: Type 600
- Connection: Threaded: JIS B 0203
- Manipulation: butterfly handle
- Main unit material: SCS 13 A
- Grand Packing material: PTFE with Glass Fiber
- Zisk material: SUS316: 1/4 B to 3/8 BSUS 304: 1/2 B to 2B
- Body Seat Ring material: PTFE with Glass Fiber
- Bonnet material: SCS 13 A
- Bore diameter: reduced bore
- Securities Code: 0302 UTKW0008
