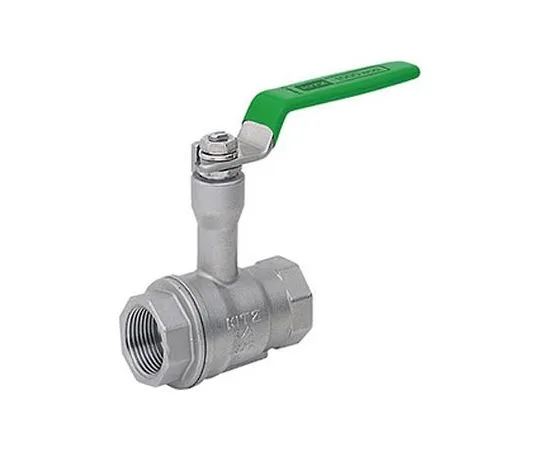

65-1883-89 Ball Valve (UTHL) Nominal Diameter 15 mm UTHL15A
Product Description
Product Model: 65-1883-89Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1883-89
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 15
- Nominal diameter (inches): 1/2
- Dimensions Between Men (mm): 60.0
- Pressure: Type 1000
- Connection: Threaded: JIS B 0203
- Operation: Lever
- Main unit material: SCS 13 A
- Grand Packing material: PTFE
- Zisk material: SUS304
- Body Seat Ring material: Hypatite PTFE
- Bonnet material: SCS 13 A
- Bore diameter: reduced bore
- Securities Code: 0302UTHL0015
