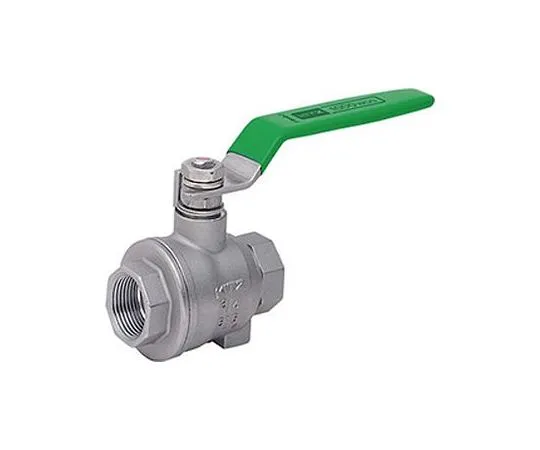

65-1883-76 Ball Valve (UTFM) Nominal Diameter 15 mm UTFM15A
Product Description
Product Model: 65-1883-76Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1883-76
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 15
- Nominal diameter (inches): 1/2
- Dimensions Between Men (mm): 62.0
- Pressure: Type 1000
- Connection: Threaded: JIS B 0203
- Operation: Lever
- Main unit material: SCS 14 A
- Grand Packing material: PTFE
- Zisk material: SUS316/SCS 14 A
- Body Seat Ring material: Hypatite PTFE
- Bonnet material: SCS 14 A
- Bore diameter: Full bore
- Securities Code: 0302UTFM0015
