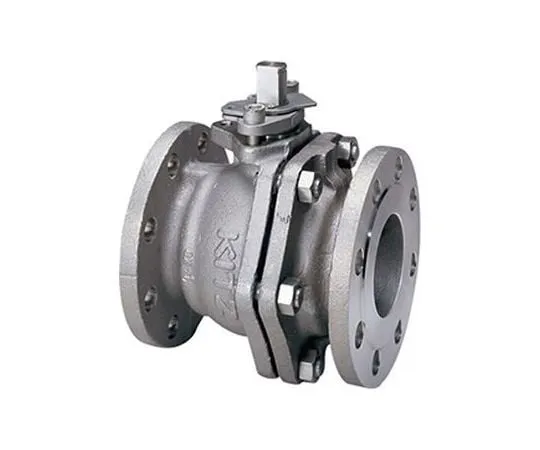

65-1883-48 Ball Valve (10 UTBD) Nominal Diameter 15 mm 10UTBD15A
Product Description
Product Model: 65-1883-48Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1883-48
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 15
- Nominal diameter (inches): 1/2
- Dimensions Between Men (mm): 108.0
- Pressure: 10 K
- Connection: Flange: JIS B 2220 10 K
- Operation: Lever
- Main unit material: SCS 13 A
- Grand Packing material: PTFE
- Zisk material: SCS 13 A/SUS304
- Body Seat Ring material: Hypatite PTFE
- Bonnet material: SCS 13 A
- Bore diameter: Full bore
- Code: 030210UTBD0015
