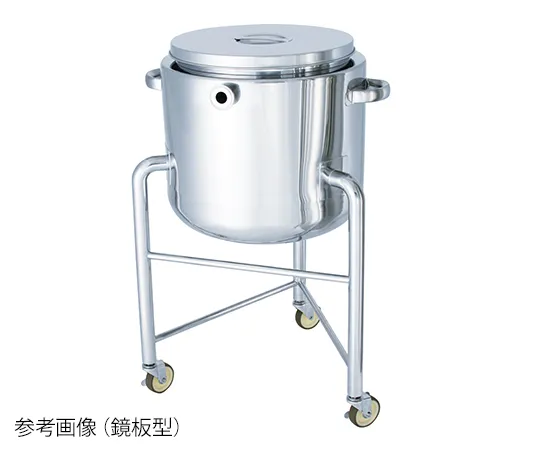

3-8421-01 Pressure Resistant Jacket General Purpose Container With Casters Hopper Type 35L HT-ST-TJ-L-36
Product Description
Product Model: 3-8421-01Product Brand: MONOVATE Co., Lt […]
Contact Us
Product Details
Product Model: 3-8421-01
Product Brand: MONOVATE Co., Ltd.
Features
- Water flows into the jacket (outer tank) to keep the contents warm and cool.
- Only the jacket part can be ***d under pressure (0~0.18 MPa).
- A separate container for receiving (subdividing) can be placed under the outlet at the bottom of the container.
- 2 out of 4 casters have stoppers.
Spec
- Container inner diameter x Jacket inner diameter x Overall height (mm): φ360 x φ430 x 900
- Capacity (L): 35
- Material: Main unit/stainless steel (SUS304), casters/urethane
- Jacket nozzle: 1S ferule
- Operating conditions (Main body (inner tank)): atmospheric pressure/atmospheric pressure (Pressure reduction not possible), operating temperature/lower than the boiling point of the content liquid
- Operating conditions (Jacket (outer tank)): Pressure/0 to 0.18 MPa, Operating temperature/Cold water to warm water
- RoHS3 (EU)2015/863 Certificates can be issued
*This product might require extra fees.
