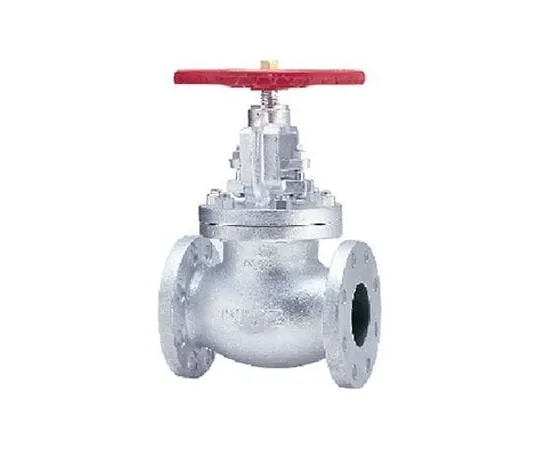

65-1881-17 Ductile Iron Glove Valve (G -10 SPBOF) Nominal Diameter 250 mm G-10SPBOF250A
Product Description
Product Model: 65-1881-17Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1881-17
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 250
- Nominal diameter (inches): 10
- Dimensions Between Men (mm): 622.0
- Pressure: 10 K
- Connection: Flange (Flat Face): JIS B 2239 10 K
- Operation: Handle: 50 A -125 A Hammer Blow: 150 A, 200 A Gear: 250 A, 300 A
- Main unit material: FCD-S
- Grand packing material: non-asbestos
- Zisk material: SUS 403: 50 AFCD-S: 65 A to 300 A
- Bonnet material: FCD-S
- Code: 0302G 10 SPBOF 0250
