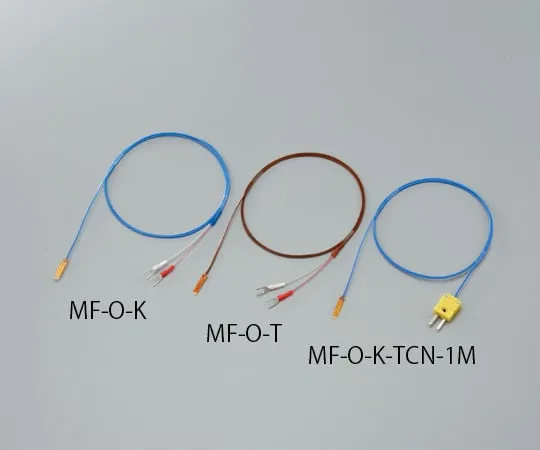

6-9248-11-56 Mold Surface Sensor with English Calibration Certificate MF-O-K
model:
6-9248-11-56
category:
toner
Product Description
Product Model: 6-9248-11-56 Features This is a waterpro […]
Contact Us
Product Details
Product Model: 6-9248-11-56
Features
- This is a waterproof and moisture-proof thermocouple for surface measurement, which is integrated by coating the temperature-sensitive part with the same material as the sheath material of the insulation-coated thermocouple and molding.
- Fast response speed and excellent workability in the field.
- With 1m lead wire (Teflon ® (FEP) coated).
Spec
- Thermocouple type: K
- Operating temperature range (deg. C): -100 to + 200
- Element: K T
- Molded part: PI (polyimide)
- Temperature sensitive part size: 5 x 20 mm
- With adhesive tape
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
