toner

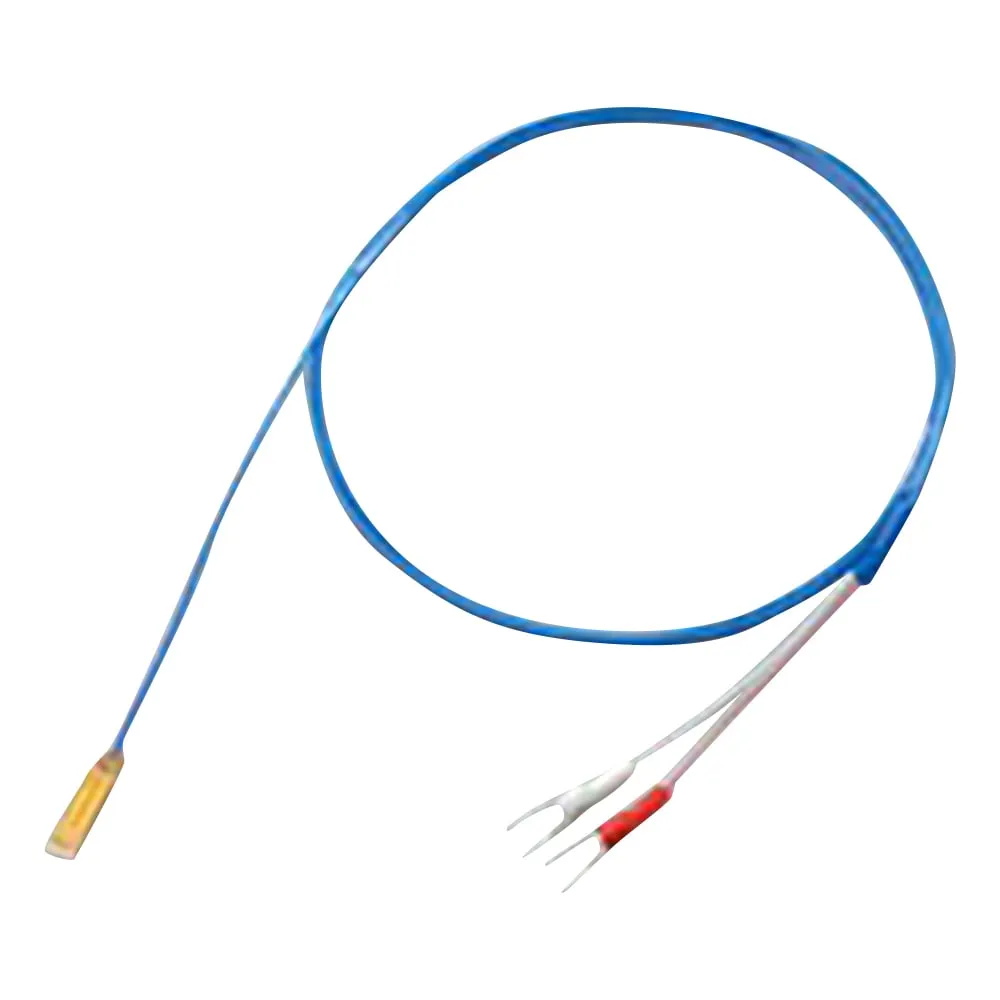

6-9248-11 Mold Surface Sensor MF-O-K
model:
6-9248-11
category:
toner
Product Description
Product Model: 6-9248-11 Features This is a splash-type […]
Contact Us
Product Details
Product Model: 6-9248-11
Features
- This is a splash-type surface measurement thermocouple with waterproof and moisture-proof specifications that is integrated by covering the temperature-sensitive area with the same material as the sheath material of the insulated-coated thermocouple and molding.
- Fast response time and excellent workability in the field.
- With 1 m lead wire (Teflon (R) (FEP) coated).
Spec
- Model number: MF-O-K
- Type of the thermocouple:K
- Operating temperature range (℃): 100 to + 200
- Element: K･T
- Mold processing section: PI (polyimide)
- Temperature sensitive part size: 5 x 20mm
- With adhesive tape
- RoHS3 (EU)2015/863 Certificates can be issued
