Spec

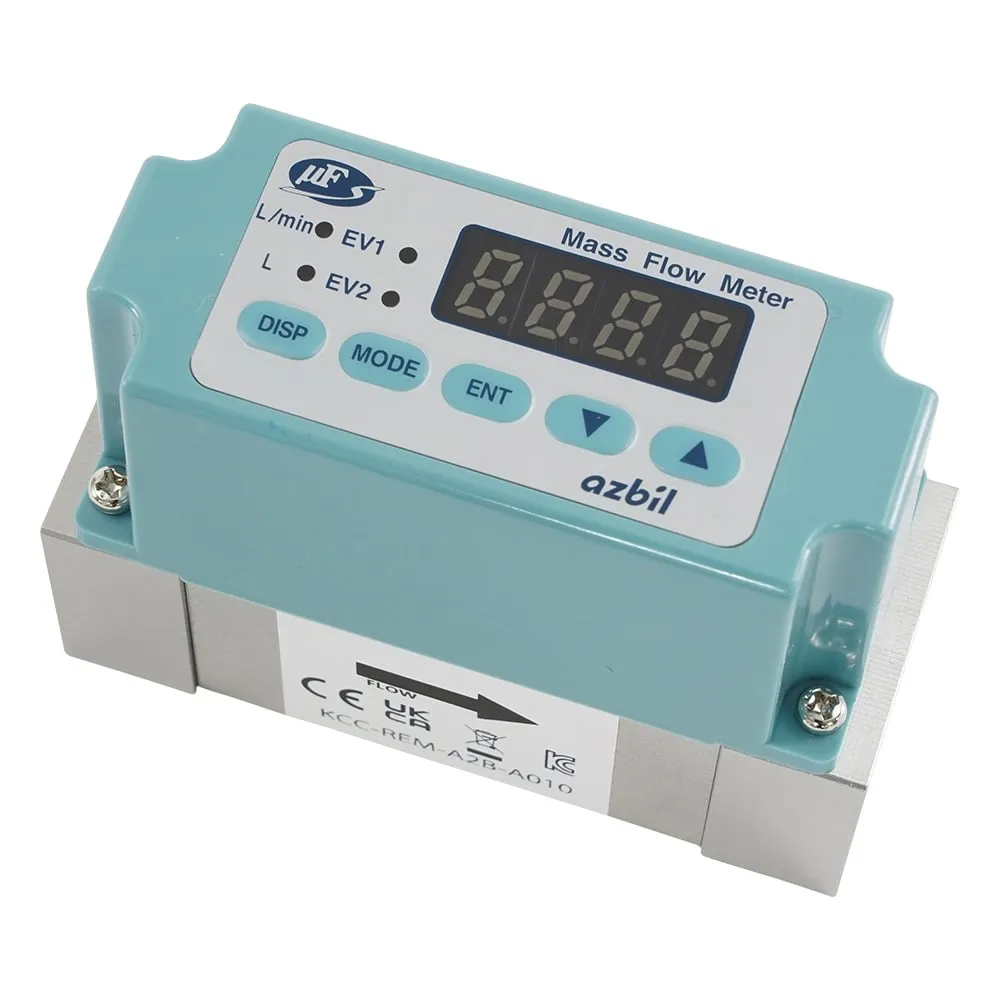

• Model number: CMS0050BSRN200000
• Stainless steel model
• Flow rate range (L/min): 50
• Measurement target gas: Air/N2, Ar, carbon dioxide, city gas 13A (46MJ), city gas 13A (45MJ) (*1), methane, propane, butane (*2)
• Measurement accuracy (at 23℃ 1atm): 0.1L/min (s) (s shows calibration standard (20℃, 1 atm air conversion)) (*3)
• Minimum display value/display resolution (instant flow rate): +/- 3% RD +/- 1 digit (2 - 20L/min: 20L range) (5 - 50L/min: 50L range), +/- 1% FS +/- 1 digit (0.2 - 2L/min: 20L range) (0.5 - 5L/min: 50L range)
• Pressure resistance: 1.5MPa
• Connection port size: Rc1/4
• Gas contact unit material: Stainless steel (SUS303)
• Rating voltage: DC12 - 24V
• Power voltage range: DC11.4 - 25.2V
• Power consumption: 100mA or less
• Instant flow rate output: DC0 - 5V, 1 - 5V, Select 4 - 20mA by body key operation (allowable load resistance 250kΩ or more: Voltage output 300Ω or less: Current output)
• Size: 91 x 37 x 69.6mm
• Mass: 800g (*1) for city gas 13A, Dep***ing on gas manufacturer, Heat quantity, The components could be different in some cases. for more information, Check for each gas manufacturer, and With regard to the application of this machine, with instruction manuals, etc., please check, or, Please contact with us. With regard to gases other than (*2), Please contact with us. (*3) Flow rate conversion standard temperature, with body key operation, [0℃, 1 atmospheric pressure conversion) (normal), (25℃, 1 atmospheric pressure conversion): alterable to it.
• *Flow rate range calibration standard: 1 atmospheric pressure 20℃ air conversion
