automaticdiluter

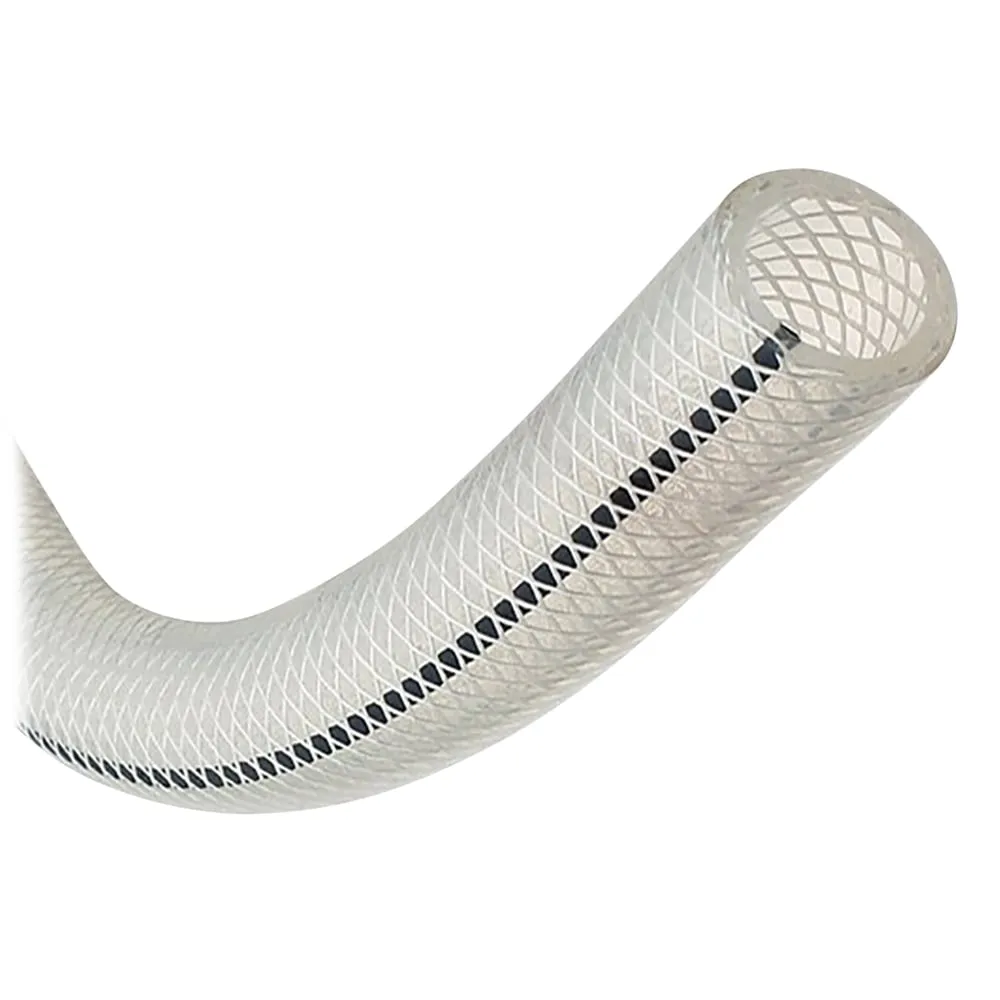

1-1717-01 TOYOFUSSO(R) E HOSE (Antistatic Type) φ12 x 18mm FFE-12
model:
1-1717-01
category:
automaticdiluter
Product Description
Product Model: 1-1717-01 Features "Static electricity ( […]
Contact Us
Product Details
Product Model: 1-1717-01
Features
- "Static electricity (static electricity) prevention": A fluorine hose with an anti-static band inside the hose to maintain anti-static effect for a long time.
- "Tetrafluorinated fluororesin": Uses tetrafluorinated fluororesin on the inner surface of the hose. Utilizing chemical resistance, non-elution, non-adhesion, and low odor characteristics, it can be ***d as a hose for all types of piping.
- "Versatile": Can be ***d as a transport hose for chemicals, chemicals, pure water, cosmetics, food, semiconductors, etc.
- [Coloring and perfumery] The inner surface is excellent in non-adhesion and water repellency, and it is difficult to color, and has little effect on odor transfer and taste.
- Cleanability: Since the inner surface of the hose is excellent in non-adhesion and water repellency, fluid does not remain in the hose and cleaning is easy.
- Pressure Resistant Blade Hose
Spec
- Model Number: FFE-12-20
- Material: Main body / modified ETFE (Fluorine Plastic), PU (polyurethane), reinforcement / polyester yarn, conductive band / carbon
- Operating temperature range:-5 ~ + 70 ° C
- pressure of ***: 0 to 1.0 MPa (23 ° C), 0 to 0.5 MPa (70 ° C)
- Maximum length: 20 m
- Food sanitation act compliance
- Inner diameter × outer diameter: φ 12 × φ 18 mm
- minimum b***ing radius: 85 mm
- * Sales are 1 meter units. The price is per meter.
- RoHS3 (EU)2015/863 Certificates can be issued
