laboratoryinstruments

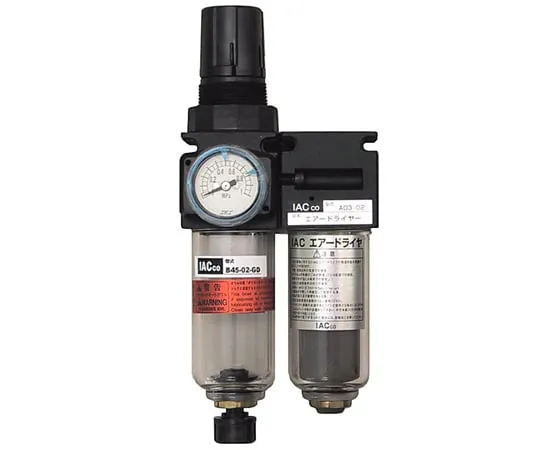

1-8696-01 Clean Air System Hollow Fiber Air Dryer + Filter Regulator AB-45
model:
1-8696-01
category:
laboratoryinstruments
Product Description
Product Model: 1-8696-01 Features Dry air with an atmos […]
Contact Us
Product Details
Product Model: 1-8696-01
Features
- Dry air with an atmospheric pressure dew point of -10°C can be obtained.
- Can be ***d with small compressors (small flow rate).
- Pressure can be adjusted.
Spec
-
Model number: AB-45
- Fluid ***d: Air
- Operation pressure range: 0.1 - 0.7MPa
- Outlet air flow rate range: 1 - 30L/min
- Filtration accuracy: 0.01μm
- Atmospheric pressure dew point: -5 to -15℃ dried air (inlet air temperature 25℃ saturated air)
- Purging volume: 3L/min 0.4MPa
- Tube bore: 1/4PT
-
Weight: 200g
- Pressure regulation range: 0.03 - 0.8MPa
- Filtration accuracy: 5μm
- Tube bore: 1/4PT
- Weight: 230g
- Set content: Hollow fiber air dryer + filter regulator + clean filter
