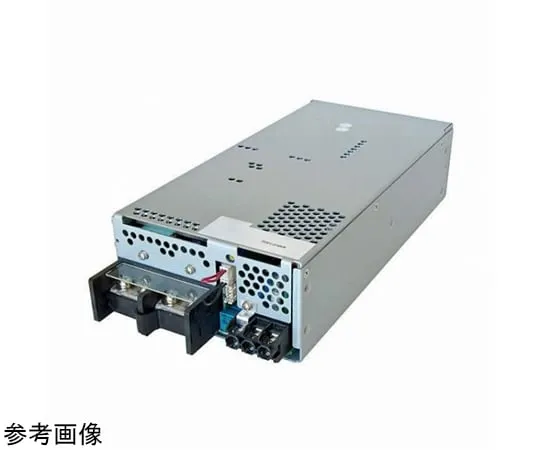

67-0478-77 Switching Power Supply 1500 W 12 V RWS1500B-12
Product Description
Product Model: 67-0478-77Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 67-0478-77
Product Brand: TDK-Lambda Corporation
Features
- Maximum Output Power: 1500 W Input Voltage Range: 85~265VAC Output Voltage: 12 V Maximum Output Current: 125 A Efficiency: 12 V (200VAC typ): 84% Operating Temperature Range: -20 to +60°C (-20 to +50°C: 100%, +60°C: 60%) External Dimensions (WxHxD) mm: 127 x 63 x 261
Spec
- Maximum output power: 1500 W
- Input voltage range: 85 ~ 265 VAC
- Output Voltage: 12 V
- Maximum output current: 125 A
- Efficiency 12 V (200 VAC typ): 84%
- Operating temperature range: -20 to + 60 degrees C (-20 to + 50 C: 100%, + 60 C: 60%)
- Dimensions (WxHxD) mm: 127 x 63 x 261
- Output Voltage: 12 V
- Output Current: 125 A
- Output Power: 1500 W
- Input voltage range: 85 ~ 265 VAC, 120 ~ 340 VDC
- Efficiency: 88%
- Size: 127 mm x 63 mm x 261 mm
- Weight: 3000 g
