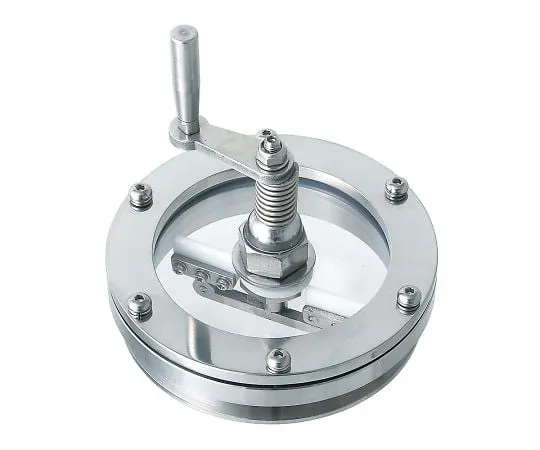

3-142-01 Stainless Steel Sight Window (With Wiper) NMBW-3S
Product Description
Product Model: 3-142-01Product Brand: MONOVATE Co., Ltd […]
Contact Us
Product Details
Product Model: 3-142-01
Product Brand: MONOVATE Co., Ltd.
Features
- You can check the condition inside the container by attaching it to the handle of the container, etc.
- Unlike a conventional peep window, the glass does not come off when it is removed from the rule, so it is safe.
- When you turn the handle, the inner wiper blade rotates to wipe away dirt and water droplets.
- The welded part is SUS316L and has excellent corrosion resistance.
- The inner surface is tapered to maximize the field of view.
Spec
- Size (mm): φ98 x 131
- Ferule size: 3S
- Main body material : Main body (bottom of window frame)/Stainless steel SUS316L, cover (Window top)/bolt washer/Stainless steel SUS304, flat packing/silicone rubber , window/heat-resistant tempered glass
- Wiper material: Liquid Contact/SUS316L, Other/Stainless steel SUS304, Wiper Blade/PTFE, shank O-Ring/Viton
- Healing size: 3S･4S
- Withdrawal strength: 0.18 MPa
- RoHS3 (EU)2015/863 Certificates can be issued
