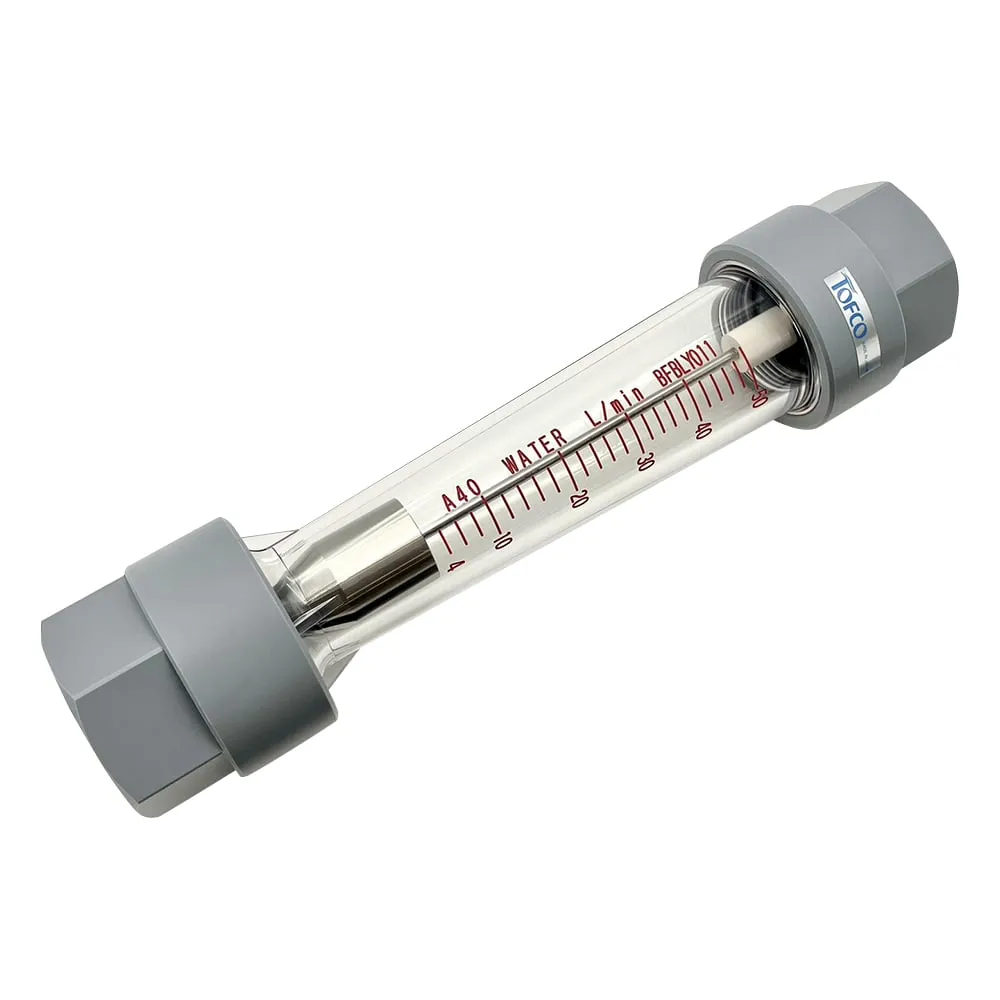

6-6075-08 Flow Meter (Acrylic Taper Pipe) 11-B50 FC-A40-11-B50-04
model:
6-6075-08
category:
toner
Product Description
Product Model: 6-6075-08 Features Suitable for monitori […]
Contact Us
Product Details
Product Model: 6-6075-08
Features
- Suitable for monitoring the flow rate of cooling water, etc., of mechanical devices.
- The design is simple, compact and durable.
Spec
- Model number: FC-A40
- Type: 11B50-04
- Flow rate (L/min): 4 - 50
- Measurement target: Water
- Temperature of ***d liquid: MAX 40℃
- Maximum operating pressure: 0.4MPa (G)
- Material: Fitting/PVC (vinyl chloride resin), Packing/NBR (nitrile rubber), Taper tube/transparent PMMA (acrylic), Floot/stainless steel (SUS316), Guide pole/stainless steel (SUS316), Stopper/stainless steel (SUS316)
- Connection port size: Rc3/4
- Size: φ50 x 216mm
- *For only water. *Fixed fitting is not included in the package.
