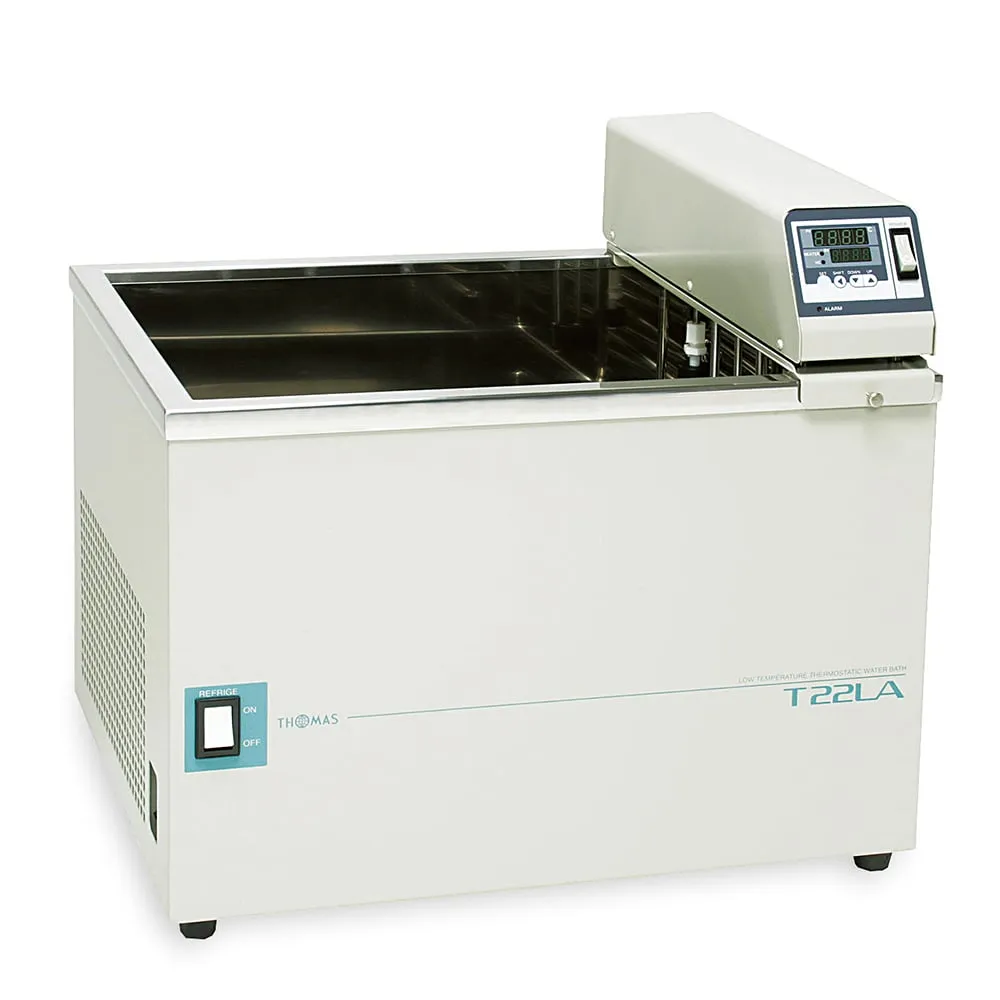

1-840-01-28 Desktop Constant-Low-Temperature Water Circulator (THOMAS) with Pre-shipment Validation T-22LA
Product Description
Product Model: 1-840-01-28Product Brand: THOMAS KAGAKU […]
Contact Us
Product Details
Product Model: 1-840-01-28
Product Brand: THOMAS KAGAKU Co., Ltd.
Features
- Economy type low temperature constant temperature water tank.
- The insulation material is PU (polyurethane) with high thermal insulation effect, and the inner tank is stainless steel (SUS304) with excellent heat and corrosion resistance.
- Temperature control is easy to *** digital setting and digital instruction, and high-precision control is possible by PID control.
- The jet agitation mechanism provides quiet and powerful agitation even during long-term continuous ***.
Spec
- Temperature point: 37 deg. C1 point
- Temperature setting range: 0 to +50°C
- Tank Internal Capacity: 20 L
- jet agitation system
- Temperature accuracy: ±0.1°C
- Temperature Control Method: Digital Temperature Indication Controller PID Control
- Heater: 500 W (Sheath Wire Type)
- Refrigerator: Air-cooled 130 W HFO-1234yf (non-CFC compatible)
- Material: Inner Tank/Stainless Steel (SUS304), Outer Tank/Copper Plate Baked Paint
- Power: 100 VAC, 50/60Hz, 8.5 A
- Tank Inner Dimensions: 480 x 350 x 150 mm
- Effective Tank Inner Dimensions: 405 x 350 x 150 mm
- External Dimensions (mm): 525 x 395 x Water Tank 370, Power Distribution Box 115
- Weight: Approx. 30 kg
- Safety devices: earth leakage breaker, warning of water level drop, prevention of excessive temperature rise in tank
- On-site validation services (IQ/OQ) are also available.
- Please contact us.
- *On-site validation service is a service where installation qualification (IQ) and operational performance qualification (OQ) are performed and inspection documents are submitted at the installation site.
- *If you would like IQOQ on site, please contact us separately. The installation address is required for the quotation.
*This product might require extra fees.
