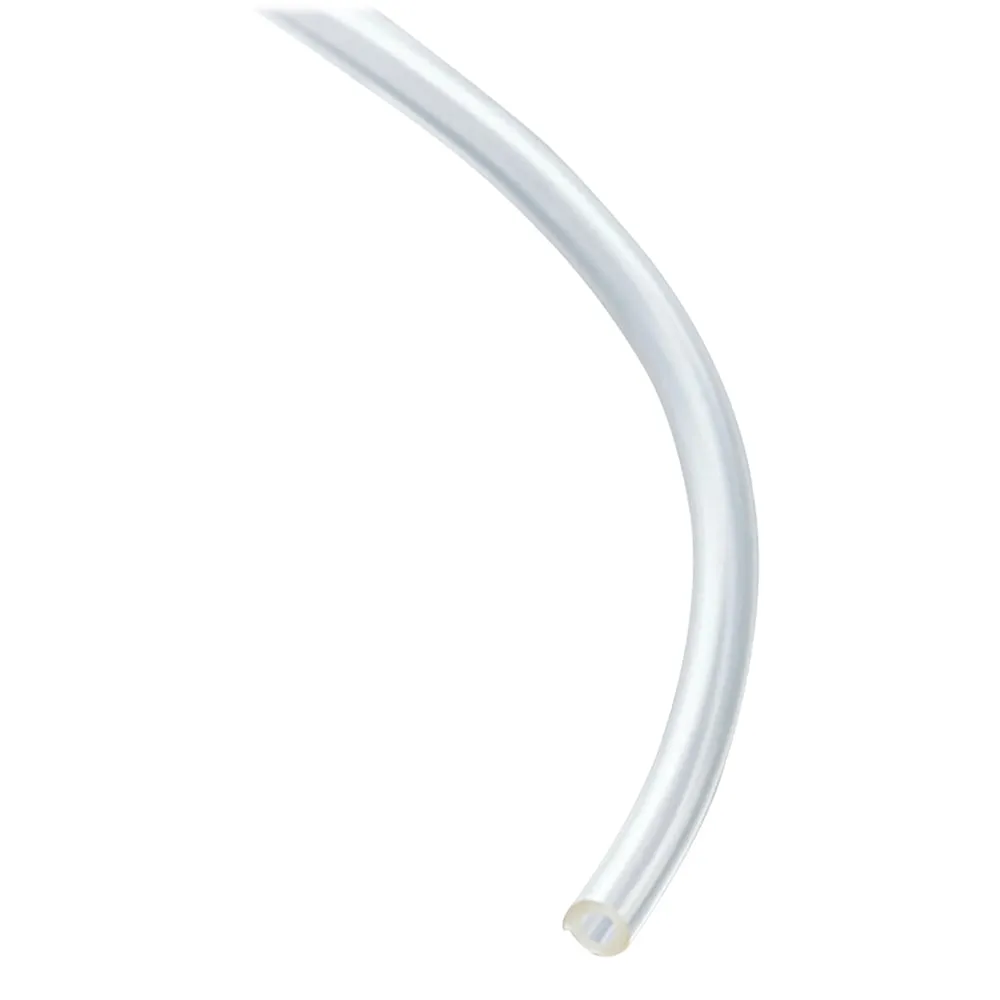

1-8291-11 Teflon Tube Inner Diameter 2 x Outer Diameter Of 4 x 380mm 77390-50
Product Description
Product Model: 1-8291-11Product Brand: Master Flex Feat […]
Contact Us
Product Details
Product Model: 1-8291-11
Product Brand: Master Flex
Features
- Lifespan is approximately 500 hours (21°C, pressure 0, 100rpm) and can be delivered under pressure of up to 0.7 MPa breakdown voltage.
- The welding part is only the inner surface of the tube.
Spec
- Model number: 77390-50 ( Teflon tube)
- Material: PTFE (poly tetrafluoroethylene)
- Maximum pressure: 0.7MPa
- Rotation speed and initial liquid feed amount: 1rpm/0.06mL/min, 75rpm/4.5mL/min, 100rpm/6mL/min, 150rpm/9mL/min, 300rpm/17mL/min *Due to the nature of the PTFE tube, liquid feed amount decreases from the initial flow rate (distilled water, pressure 0).
- Inner diameter 2 x outer diameter 4 x 380mm
- 2 pieces
- *Gas feeding is not available.
- RoHS3 (EU)2015/863 Certificates can be issued
