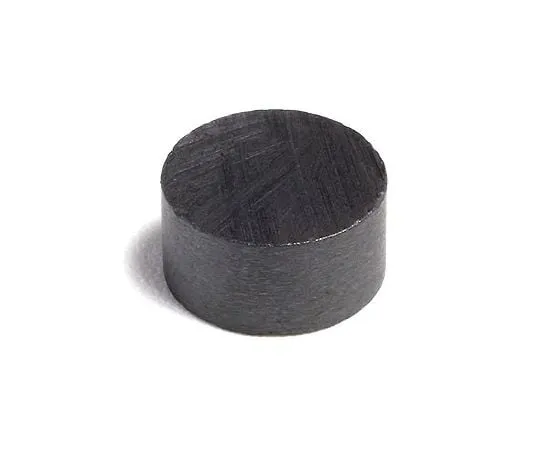

1-2153-12 Ferrite Magnet φ10 10 Pcs FE013
Product Description
Product Model: 1-2153-12Product Brand: Niroku seisakush […]
Contact Us
Product Details
Product Model: 1-2153-12
Product Brand: Niroku seisakusho Co., Ltd.
Features
- Best value for money.
- It's a dark magnet that you see in general, and it's ***d in a very wide range of applications.
- Although its magnetic properties are not as good as those of rare earth magnets, its high coercivity makes it difficult to demagnetize and very stable.
- There are anisotropy and isotropy. Anisotropy is a magnet with stronger magnetic force than isotropy.
- The mechanical strength is low, so it is easy to break like pottery.
- It doesn't rust easily, so it usually doesn't need surface treatment.
Spec
- Residual magnetic flux density: 0.380T (3,800G) - 0.420T (4,200G)
- Allowable temperature limit: About 300℃
- Diameter x thickness (mm): φ10 x 5
- Surface Magnetic flux density (mT): 110
- Quantity: 1 package (10 pcs)
- Anisotropy
- *Surface magnetic flux density is reference value.
- Model number: FE013
- RoHS3 (EU)2015/863 Certificates can be issued
