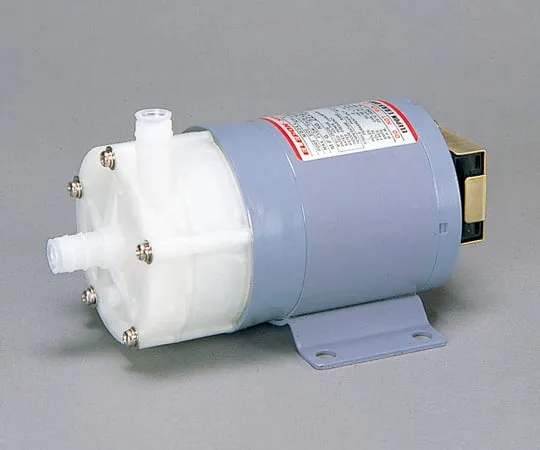

1-7899-01 Sealless Pump SL-2S
Product Description
Product Model: 1-7899-01Product Brand: ELEPON E.C.A.P. […]
Contact Us
Product Details
Product Model: 1-7899-01
Product Brand: ELEPON E.C.A.P. Corporation
Features
- There is no liquid leak from pump casing with magnet drive system.
- Fine selection is possible by abundant variations.
- Polypropylene excellent in corrosion resistance is ***d for the main quality of the material.
- It is simple, and since parts are little structure, maintenance is also easy.
Spec
- Model number: SL-2S
- Connection port size (***d hose inner diameter): System/hose, Suction side/φ12, Discharge side/φ12
- Maximum flow rate (50/60Hz): 15/19L/min
- Maximum head (50/60 Hz): 2.4/3.4m
- Flow rate (50/60Hz) (head): 8/13L/min (1.5m)
- Motor: Rated output/15W, Power/100V single phase
- Weight: 2.0kg
- Liquid junction material Casing/PP + GF, Impeller/PP + GF, Bearing/rare CFC, Pump axis/ceramic, Thrust bearing/ceramic, O-ring/FKM
- *It is up to 1.1 that as for the specific gravity limit of the *** liquid in a rated performance point, Viscosity is to 30mPa・s.
- *Motor type: All-enclosed self-cooling type
- *Flange connection type phase flange, packing, bolt nuts are not included.
