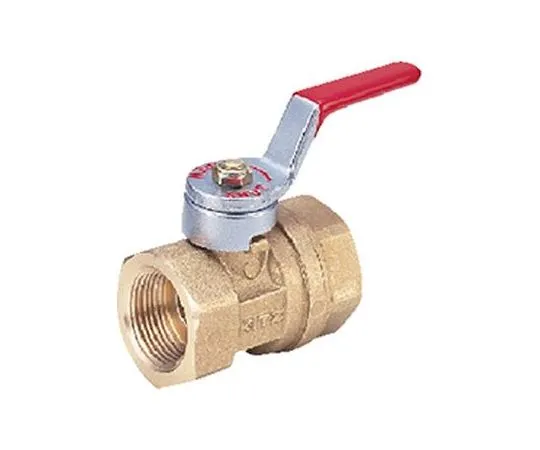

65-1874-73 T-ball Series (TY) Ball Valve Nominal Diameter 8 mm TY8A
Product Description
Product Model: 65-1874-73Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1874-73
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 8
- Nominal diameter (inches): 1/4
- Dimensions Between Men (mm): 46.0
- Pressure: Type 150
- Connection: Threaded: JIS B 0203
- Operation: Lever
- Main unit material: C 3771 BE
- Zisk material: C 3604 BD + Cr Plating
- Body Seating Ring material: PTFE
- Bonnet material: C 3771 BE
- Bore diameter: reduced bore
- Code: 0302TY0008
