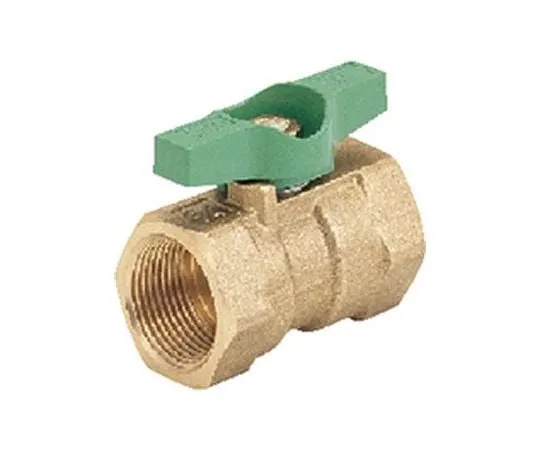

65-1874-45 T-ball Series (TKT) Ball Valve Nominal Diameter 6 mm TKT6A
Product Description
Product Model: 65-1874-45Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1874-45
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 6
- Nominal diameter (inches): 1/8
- Dimensions Between Men (mm): 32.0
- Pressure: Type 600
- Connection: Threaded: JIS B 0203
- Manipulation: T-handle
- Main unit material: C 3771 BE
- Grand Packing material: PTFE with Glass Fiber
- Zisk material: C 3771 BE + Ni-Cr Plating
- Body Seat Ring material: PTFE with Glass Fiber
- Bonnet material: C 3604 BD: 1/8 B
- Bore diameter: reduced bore
- Securities Code: 0302TKT0006
