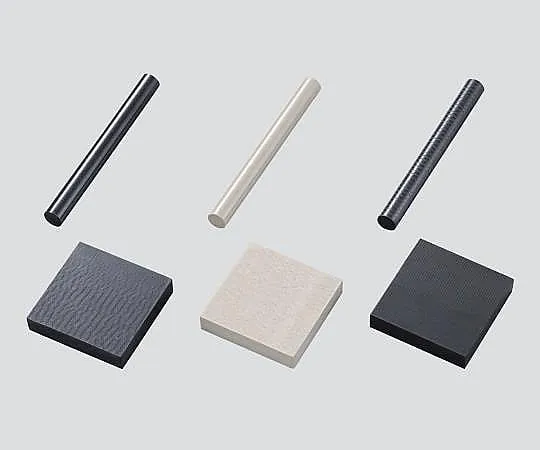

3-3094-02 High-Performance PEEK Resin Round Bar 30% Carbon Fiber Addition φ10 x 1000 TECAPEEKCF30-1
model:
3-3094-02
category:
analyticalinstruments
Product Description
Product Model: 3-3094-02 Features The 30% glass fiber a […]
Contact Us
Product Details
Product Model: 3-3094-02
Features
- The 30% glass fiber added grade has excellent electrical insulation, chemical resistance, radiation resistance, abrasion resistance, and sliding properties.
- The sliding grade is PEEK resin filled with carbon fiber, PTFE, and graphite, and has excellent sliding properties in high temperature environments.
- Although the 30% carbon fiber grade is not electrically insulating, it is extremely strong and rigid, and has excellent chemical resistance, radiation resistance, abrasion resistance, and sliding properties.
Spec
- Model number: TECAPEEK CF30-1
- Specification: 30% carbon fiber addition
- Model number: TECAPEEK CF30-1
- Size (mm): φ10 x 1000
- Dimensions tolerance (thickness/outer diameter) (mm): +0.10 to +0.80
- Material: PEEK
- Allowable temperature limit: 260℃
- PV value: 1.9 (MPa, m/sec) (sliding grade only)
- *Tube-shaped sliding grade is also available. Please contact with us. *Cut, custom processing: Cutting and processing according to desired size is available. ◎=Cuttable and available product: round bar/this can be specified in 10mm up to L=100 to 1000mm, cut dimension accuracy: +0.00 to +3.5mm, Plate/this can be specified in 10mm up to W=50 - 500mm, in 10mm up to D=50 to 1000mm, cut dimension accuracy: +0.00 to +3.5mm *please prepare drawing, etc. to measure the dimensions when requesting special order processing. *The size of 1 3-3096-03 (sliding grade) only is φ15 x 1000.
- RoHS3 (EU)2015/863 Certificates can be issued
