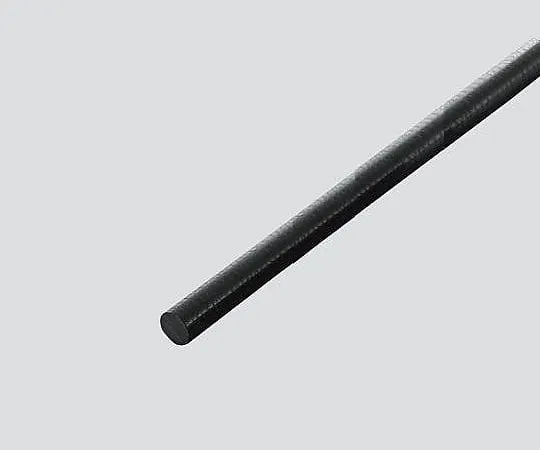

3-3088-01 Conductive PEEK Resin Round Bar φ10 x 1000 TECAPEEKELSnano10
model:
3-3088-01
category:
analyticalinstruments
Product Description
Product Model: 3-3088-01 Features An excellent conducti […]
Contact Us
Product Details
Product Model: 3-3088-01
Features
- An excellent conductive PEEK resin containing carbon nanotubes.
- It has the same cutting machinability as PEEK natural material and has less wear on cutting tools.
- Has high dimensional stability and small dimensional change after cutting.
Spec
- Size (mm): φ10 x 1000
- Dimensions tolerance (thickness/outer diameter) (mm): +0.10 to +0.70
- Material: PEEK resin (carbon nanotube added)
- Allowable temperature limit: 260℃
- Surface resistance: 10＾2 - 10＾4Ω
- *Cut, custom processing: Cutting and processing according to desired size is available. *Cuttable product: round bar/this can be specified in 10 mm up to L=100 - 1000, cut dimension accuracy: +0.00 to +3.5mm, Plate/this can be specified in 10mm up to W=50 - 500mm, in 10mm up to D=50 to 1000mm, cut dimension accuracy: +0.00 to +3.5mm *please prepare drawing, etc. to measure the dimensions when requesting special order processing.
- RoHS3 (EU)2015/863 Certificates can be issued
