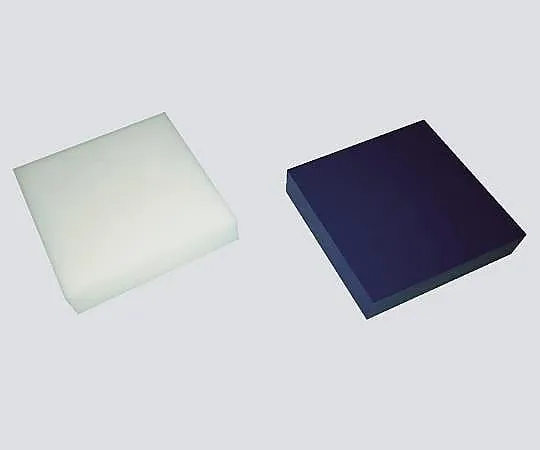

3-3081-04 Food Standard Compliant Polyacetal Resin Plate (Blue) 500 x 1000 x 10 TECAFORMAHBLUE9
model:
3-3081-04
category:
analyticalinstruments
Product Description
Product Model: 3-3081-04 Features Excellent cutting mac […]
Contact Us
Product Details
Product Model: 3-3081-04
Features
- Excellent cutting machinability and good balance of heat resistance and mechanical properties.
- It has excellent friction and wear properties, good sliding properties, organic solvent resistance, oil resistance, and grease resistance.
- Unlike cast nylon, it has a relatively low water absorption rate, so its dimensions and strength are stable.
- It has the same mechanical properties and heat resistance as natural colored polyacetal.
- Since it is a blue plastic that does not exist in nature, it is easy to visually identify when foreign matter is mixed in.
- polyacetal resin
Spec
- Width x depth x thickness (mm): 500 x 1000 x 10
- Thickness dimension tolerance (mm): +0.20 to +1.10
- Cut: ◎
- Color: Blue
- Material: POM (polyacetal resin) -C
- Conform laws and regulations: PIM EU10/2011, FDA, Food Sanitation Law (100℃ or less)
- Allowable temperature limit: 100℃
- *Cut, custom processing: Cutting and processing according to desired size is available (please prepare the drawing that shows dimensions when ordering). *◎: Cuttable product/this can be specified in 10mm up to W=50 to 500, in 10mm up to D=50 to 1000. Cutting dimension accuracy: +0.00 to +3.5mm
- RoHS3 (EU)2015/863 Certificates can be issued
