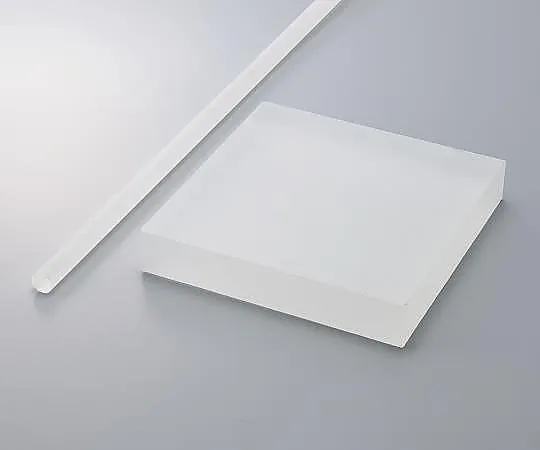

3-3074-01 Cross-Linking Polystyrene Resin (REXOLITE) φ25.4 x 1220 REXOLITE1422-25.4
model:
3-3074-01
category:
analyticalinstruments
Product Description
Product Model: 3-3074-01 Features An extremely unique r […]
Contact Us
Product Details
Product Model: 3-3074-01
Features
- An extremely unique resin material with excellent GHz band dielectric properties and transparency.
- It has a relative permittivity of 2.53 in the frequency range of 1 MHz to 500 GHz and a dielectric tangent of 0.00066 at 10 GHz.
- Excellent material with excellent insulation performance (d***rite resistance), acoustic transmission, optical properties, radiation resistance, and low generation of volatile gases.
- Acoustic and dielectric properties materials
Spec
- Size (mm): φ25.4 x 1220
- Dimensions tolerance (thickness/outer diameter) (mm): +0.00 to +1.00
- Material: Cross-linking PS (polystyrene)
- Allowable temperature limit: 80℃
- Transmission speed of sound: 2360m/sec
- Outgas characteristics: TML (weight loss ratio): 0.14%, CVTM (re-aggregated material amount ratio): 0.02%
- *ASTM E 595: Under vacuum at 125℃, By test conditions for 24 hours
- RoHS3 (EU)2015/863 Certificates can be issued
