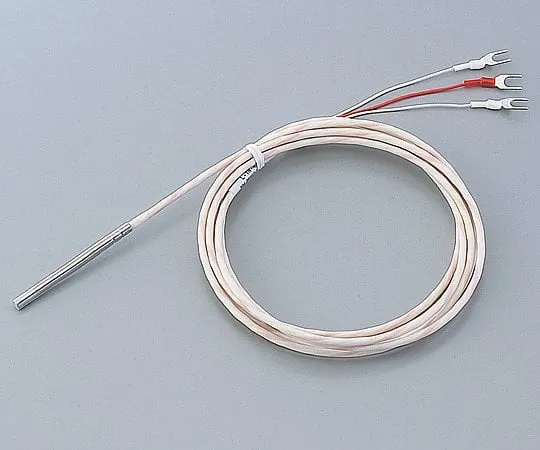

5-1081-01-56 Platinum Temperature Measuring Resistor Class A 3-Wire Type (Teflon R Mold Type) with English Calibration Certificate L-TN-4-PT100
model:
5-1081-01-56
category:
toner
Product Description
Product Model: 5-1081-01-56 Features Since the temperat […]
Contact Us
Product Details
Product Model: 5-1081-01-56
Features
- Since the temperature sensitive part is molded with Teflon, it has excellent chemical resistance, corrosion resistance, and water resistance.
Spec
- Temperature range: -200 to + 200 degrees C
- Size of sheath: phi 4.5 x 55 mm
- Element: Platinum temperature-measuring resistor, Class A 3-wire type
- Coating material: Teflon (Fluororesin)
- Lead wire length: 2 m
- Lead wire terminal: Crimp terminal
- Teflon mold type
- *Cable length and terminal size can be changed, and custom fabrication of sheath lengths up to 1000 mm (in 10 mm increments) is possible. Please inquire.
