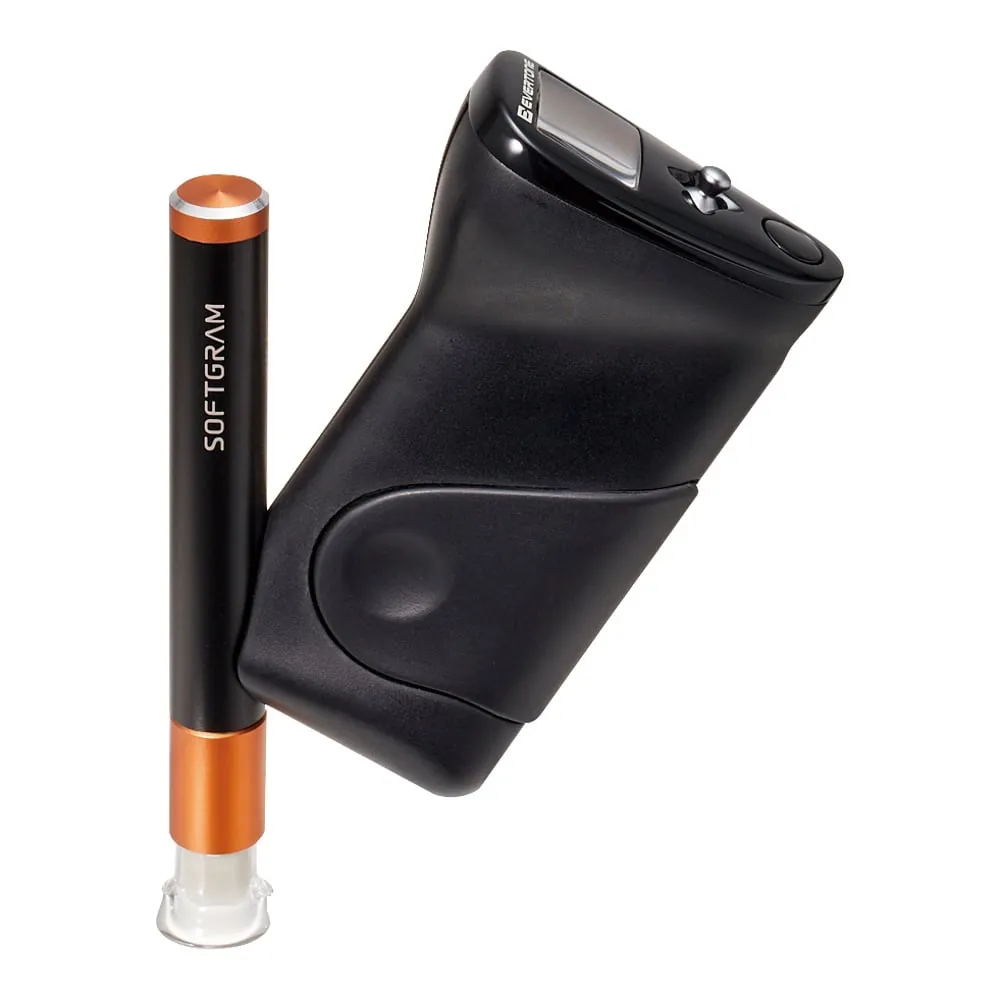

4-5113-01 Softness sensor SOFTGRAMR SG0305
Product Description
Product Model: 4-5113-01Product Brand: SHINKO DENSHI CO […]
Contact Us
Product Details
Product Model: 4-5113-01
Product Brand: SHINKO DENSHI CO., LTD.
Features
- The softness can be measured as kPa.
- It's portable.
Spec
- Specifications: Body
- Measuring range (kPa): 10 ~ 1500
- Minimum indication: 0.1 kPa (less than 100 kPa), 1 kPa (more than 100 kPa).
- Ball indenter diameter: 3 mm
- Indentation: 0.5 mm
- Reproducibility: manual/coefficient of variation 10% or less, automatic/coefficient of variation 3% or less (less than 30 kPa)/1% or less (30 kPa or more)
- Power supply: 2.4 VDC 700 mAh (AC adapter included)
- Weight: 150 g
- Size: 146.6 x 34.2 x 86.3 mm
- *There are some items that can not be measured such as uneven measuring surface, cavity/slit, no reaction force, and wet.
- *For manual measurements, the values may vary dep***ing on the weighting at the time of measurement.
