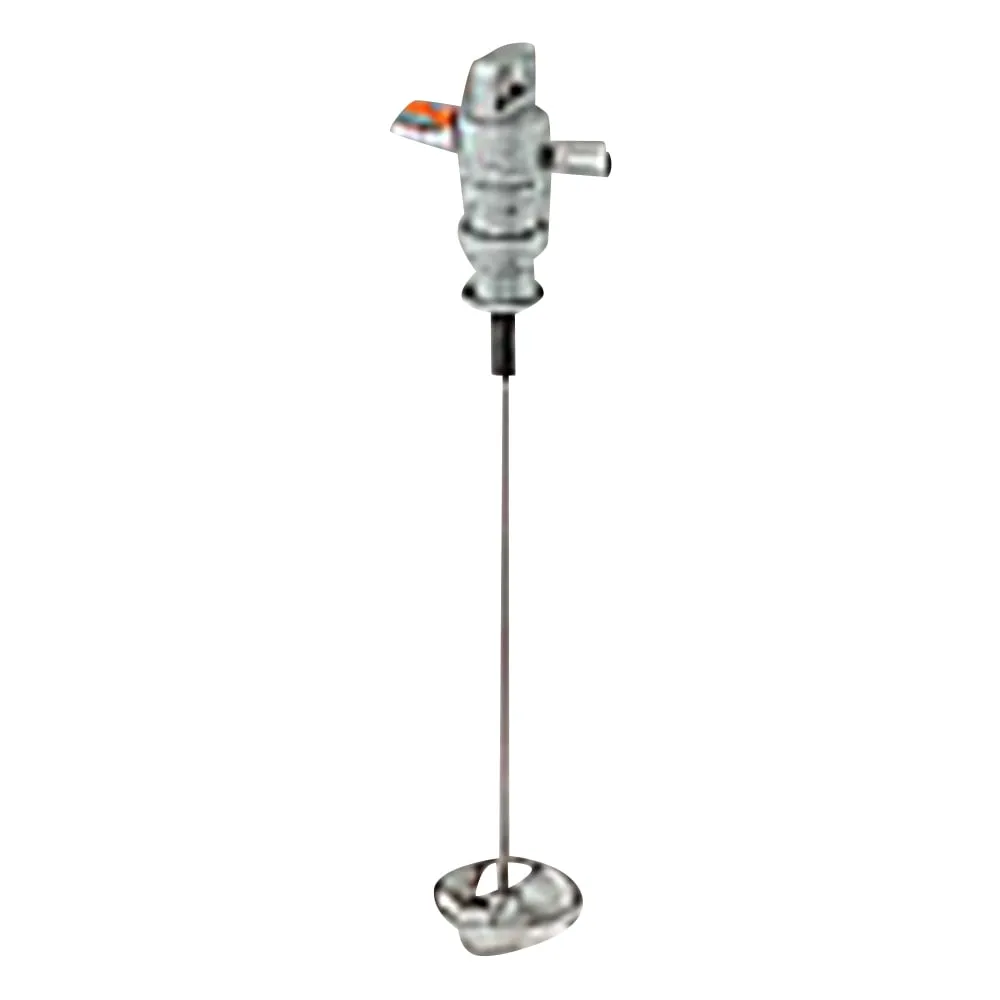

1-788-02 Air Mixer 80 - 450rpm M05-600BN
model:
1-788-02
category:
laboratoryinstruments
Product Description
Product Model: 1-788-02 Features Powerful as a high-vis […]
Contact Us
Product Details
Product Model: 1-788-02
Features
- Powerful as a high-viscosity, low-pass diversion.
Spec
- Model number: M05-600BN
- Rotation speed: 80 - 450rpm
- Torque: 39.2N・m (4kg・m)
- Material: Shaft/stainless steel (SUS304), Propeller/aluminum
- Air pressure: Approximately 0.59MPa (6kg/cm2)
- With silencer
- Output: 0.46kW
- Hose fitting: PT1/4
- Shaft diameter: φ15mm
- Flange diameter: φ80mm
- Shaft length: 530mm
- Main unit size: 190 x 100 x 234mm
- Attached propeller diameter: φ140mm
- Number of attached propeller 1 sheets
- Length: 768mm
- *Including exhaust port, silencer
