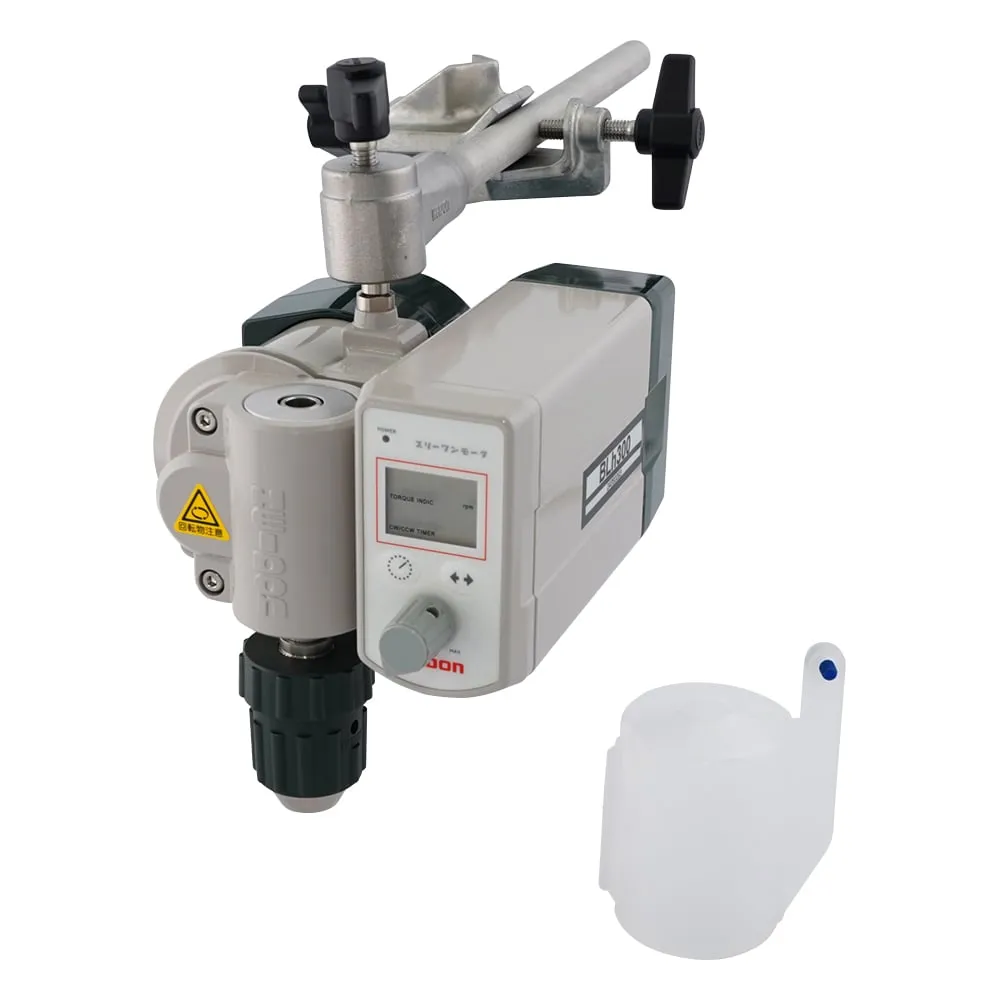

1-7123-01-22 Three-One-Motor High Power with Pre-shipment Inspection Document BLh300
Product Description
Product Model: 1-7123-01-22Product Brand: THREE-ONE MOT […]
Contact Us
Product Details
Product Model: 1-7123-01-22
Product Brand: THREE-ONE MOTOR
Features
- Maintains the set rotation speed with high accuracy against viscosity change during stirring.
- Since it ***s a brushless motor, maintenance of the motor body is unnecessary.
- It does not emit noise that affects other equipment, and it is designed not to malfunction even if it is received.
- With free joint hand tightening chuck.
Spec
- Specifications: High Power
- Speed: 5~300rpm
- Rated torque: 2.6 N/m
- Motor: DC Brushless Motor Type B Insulated (130°C) 80 W
- Rotation Control: Feedback Control/Normal/Reverse Rotation Switching (Timer Mode/Manual)
- Forward reverse timer: 5, 10, 20, 30, 45, 60 sec. Setting can be switched.
- With Off Timer
- Panel Display: Speed Digital 4 Digits/Overload Indication/Torque Indicator (1 Scale 20%)
- Chuck: Collet Type Hand Clamping Chuck for φ8mm
- Safety Device: Current Limiting Circuit, Thermal Protector: Motor Coil Temperature 90°C Safety Cover
- Power Cord Length: 2 m (with 2-Pole Ground Plug)
- Power Supply/Power Consumption: Single Phase 100~240 VV 50/60Hz Shared 200VA
- Size: W134mm x D175mm x H210mm(Free joint, not including power cord)
- Weight: 2.2 kg
- Accessories: Clamp Holder (Type: 21 x 16) x 1 (Mountable Rod Diameter φ21 mm)
- Application: For high viscosity
- *Stand, shaft and stirring blade are sold separately.
- *Stand is not included. Refer to 1-2093-01.
- *It is possible to make special orders such as ext***ed power cord and 200 V specification. Please contact us.
- Check items: Actual measurement speed, timer operation, forward/reverse rotation changeover (Since there is no accuracy, check at more than the rated speed.)
