Features

• Description

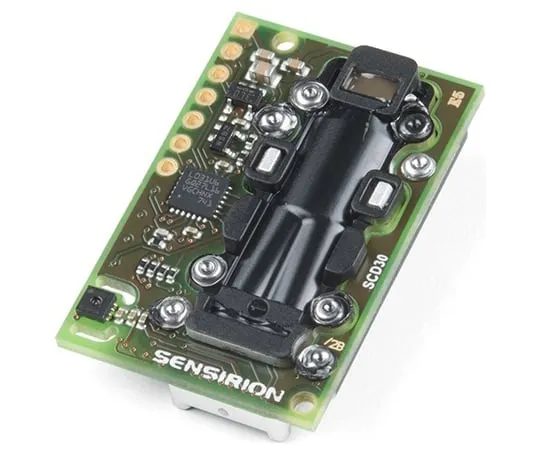

• The SCD30 from Sensirion is a high quality Nondispersive Infrared(NDIR)based CO2 sensor capable of detecting 400 to 10000ppm with an accuracy of ±(30ppm+3%). In order to improve accuracy the SCD30 has temperature and humidity sensing built-in, as well as commands to set the current altitude. For additional accuracy the SCD30 also accepts ambient pressure readings!
• We've written an Arduino library to make reading the CO2, humidity, and temperature very easy. It can be downloaded through the Arduino Library manager:search for 'SparkFun SCD30' or it can be found in the
• Documents
• tab above.
• The SCD30 Humidity and Temperature Sensor can also be automatically detected, scanned, configured, and logged using the OpenLog Artemis datalogger system. No programming, soldering, or setup required!
• Note:The SCD30 has an automatic self-calibration routine. Sensirion recomm***s 7 days of continuous readings with at least 1 hour a day of 'fresh air' for self-calibration to complete.
• Features
• Power supply voltage:3.3V - 5.5V
• NDIR CO2 sensor technology
• Integrated temperature and humidity sensor
• Best performance-to-price ratio
• Dual-channel detection for superior stability
• Small form factor:35 mm×23 mm×7 mm
• Measurement range:400 ppm - 10.000 ppm
• Accuracy:±(30 ppm + 3%)
• Current consumption:19 mA @ 1 meas. per 2 s.
• Energy consumption:120 mJ @ 1 measurement
• Fully calibrated and linearized
• Digital interface UART or I2C
