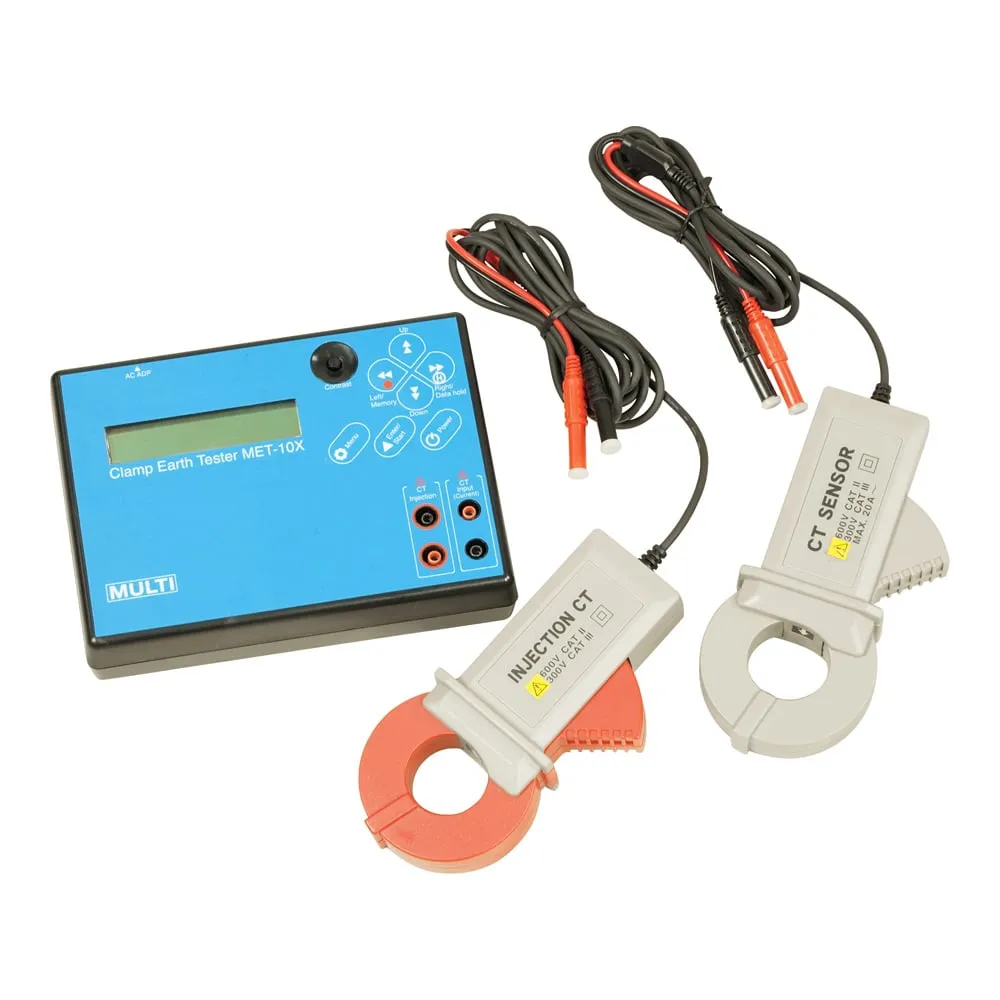

4-4610-01 Clamped Ground Resistance Meter (Built-in BluetoothR) MET-10X
model:
4-4610-01
category:
toner
Product Description
Product Model: 4-4610-01 Features It connects to your s […]
Contact Us
Product Details
Product Model: 4-4610-01
Features
- It connects to your smartphone or tablet via Bluetooth ®, allowing you to operate it from a distance (up to about 10 meters) and store data.
- It can be measured just by clamping to the ground wire and pressing a button.
Spec
- Size (mm): 190 x 42 x 140
- Weight (g): approximately 450
- Measurement function: Ground resistance, surge impedance, AC current (load current and leakage current)
- Measurement system: CT clamp system
- Ground resistance range: Low/0.10 ~ 10.00 ohms, High/10.0 ~ 500.0 ohms
- Accuracy: 0.10 ~ 1.00 ohms/+ 0.1 ohms, 1.00 ~ 10.00 ohms/+ 0.5 ohms, 10.0 ~ 50.0 ohms/+ 2.0 ohms, 50.0 ~ 200.0 ohms/+ 5.0 ohms, 200.0 ~ 300.0 ohms/+ 20.0 ohms, 300.0 ~ 500.0 ohms/+ 30.0 ohms
- Communication: Bluetooth 4.2 Class 2
- Memory: 200 entries
- Other functions: data hold, auto power off, over display, battery voltage drop display
- Power supply: 4 AA alkaline batteries (included for testing) or AC adapter (sold separately)
- Size (CT for detection/CT for injection): 90.5 x 38 x 165 mm
- Weight: CT for detection/about 460 g, CT for injection/about 440 g
- Accessories: carrying case, CT for detection (phi 34 mm), CT for injection (phi 34 mm), auxiliary lead wire
