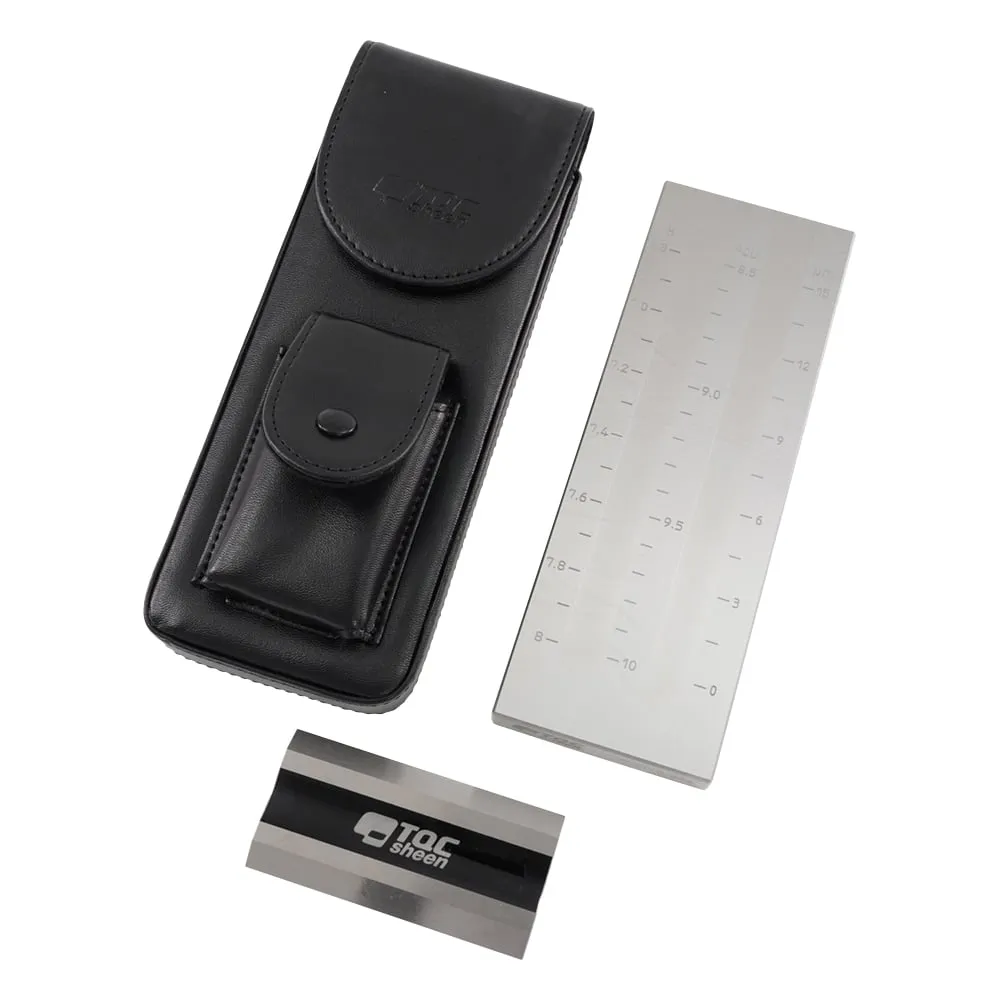

4-4450-01 Particle size meter (grindmeter) Measuring range: 0 ~ 15 micron VF2110
Product Description
Product Model: 4-4450-01Product Brand: TQC Sheen Featur […]
Contact Us
Product Details
Product Model: 4-4450-01
Product Brand: TQC Sheen
Features
- Dispersion of solid particles such as paints, inks, chemicals and pigments can be measured.
- Scrape the sample draped over the double grooves with a scraper, and read with the scale of the surface.
Spec
- Measuring range (micrometers): 0 ~ 15
- Scale interval (micrometers): 1.5
- Material: Stainless steel (SUS 420 j 2 (ASAB Stavax ESR))
- Size: Body/175 x 60 x 12 mm, Scraper/75 x 38 x 8 mm
- Groove width: 12 mm x 2
- Standards: Compliance/ASTM D 1210, ASTM D 1316, ISO 1524, DIN EN 21524, BS 3900 - C6, Compliance/JIS K 5600 -2 -5
- Accessories: scraper, case
