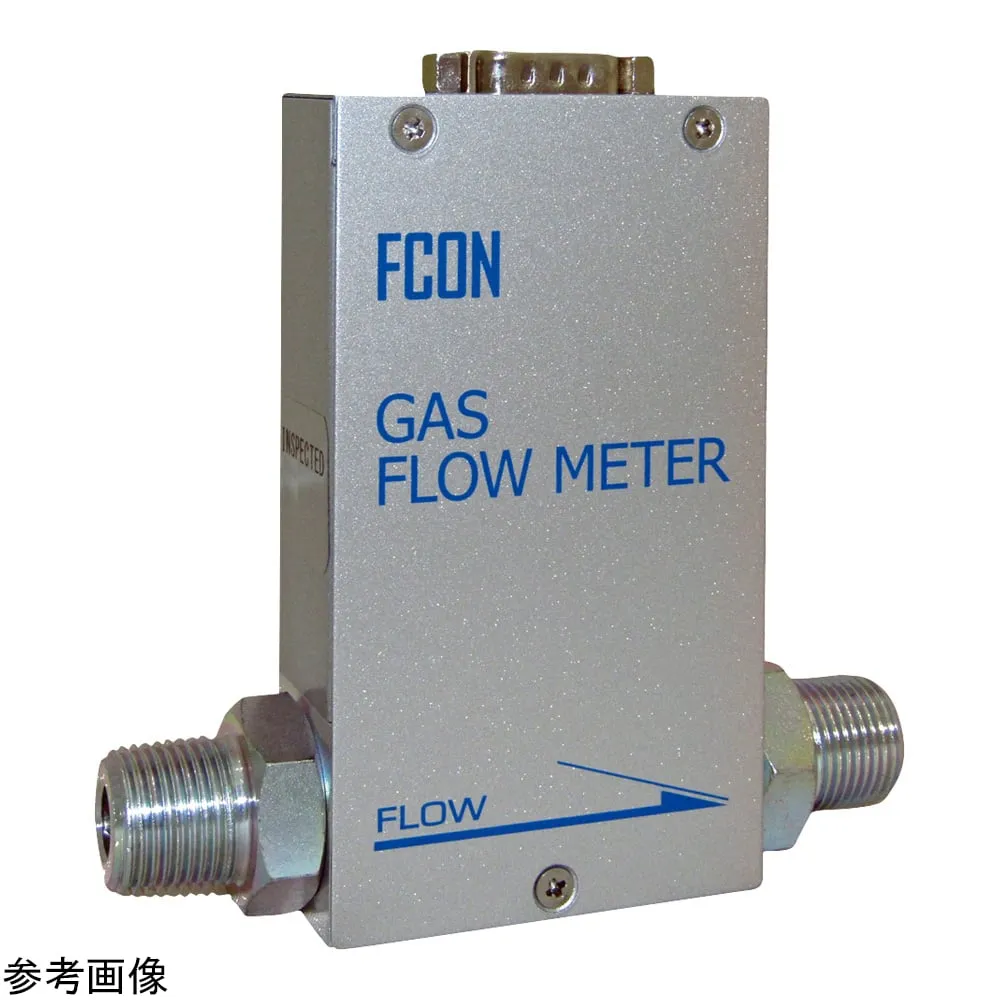

4-4083-01 Gas Flow Meter N2 50LM GFM050-38R-50LM-N2-4
model:
4-4083-01
category:
toner
Product Description
Product Model: 4-4083-01 Features It has a thermal sens […]
Contact Us
Product Details
Product Model: 4-4083-01
Features
- It has a thermal sensor.
- It is a low-pressure loss structure.
- Compact size supports up to 200LM.
Spec
- Gas species: N2
- Maximum measured flow rate (LM): 50
- Connection pipe diameter: 1/4 inch
- Size: 100 x 25.4 x 96.4 mm
- Flow rate accuracy: +/- 2% FS (25 degrees C, 20 ~ 100% hours), +/- 3% FS (25 degrees C, 0 ~ 19% hours)
- Reproducibility:. + -. 0.5% FS
- Responsiveness: 10 sec or less
- Pressure capacity: 1 mPa (g)
- Flow rate output signal: Analog 0 ~ 5 VDC
- Supply power voltage: +/- 15 VDC +/- 5%
- Communication method: Analog 0 ~ 5 VDC (D-sub 9 pin connector)
- Seal Material: Fluorine Rubber
- Gas contact materials: Aluminum (A 6061), SUS 316, SS (rolled steel for general construction), fluororubber
- Fitting 3/8 R (male screw)
- Weight: approximately 300 g
