4-3956-01 Residual Oxygen Measurement Set In Package Oxygen Measurement Range: 0 ~ 35% ResOx5695-H
model:
4-3956-01
category:
toner
Product Description
Product Model: 4-3956-01 Features This is an oxygen con […]
Contact Us
Product Details
Product Model: 4-3956-01
Features

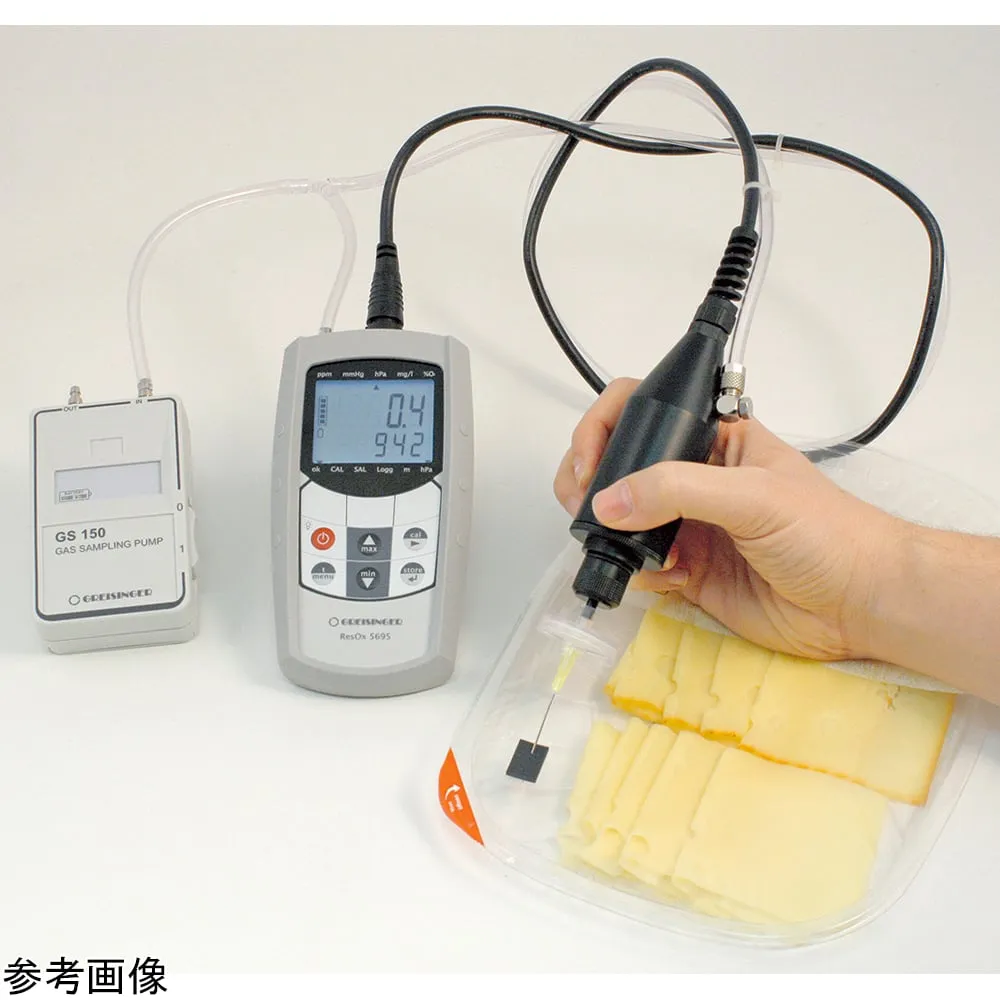

- This is an oxygen concentration measurement set for measuring and confirming residual oxygen in the package.
- It is possible to check whether oxygen remains in food packages that are filled with inert gas, and to measure the internal oxygen in the case of highly concentrated oxygen.
- Both the measuring instrument and pump are battery-powered and can be measured anywhere to be inspected.
- You can switch between 0.01% and 0.1% resolution.
Spec
- Oxygen measurement range: 0 ~ 35%
- Number of pieces: 1
- < Body >
- Measurement items: Oxygen, temperature and barometric pressure
- Measuring range: Temperature/0.0 ~ 50.0 deg. C, Pressure: 300 ~ 5000 hPa
- Port for pressure correction: Takenoko port for tube with inner diameter of .PHI.4 mm/6 mm
- Connection cables (sold separately): PC connection/USB 5100, analog output/AAG 5000
- Analog output: 0 ~ 1 V scalable
- Logging: interval/10,000 data, instantaneous/1000 data
- Features: Maximum/minimum display, pressure compensation
- Power: 006P 9 V battery (included for testing), USB power supply (USB 5100, sold separately)
- Size: 160 x 86 x 37 mm
- Accessories: GS 150 pump, hose, T-piece, filter, 2 suction needles, 45 pieces of adhesive seal, hard case
- < Pumps >
- Drive system: Motorized membrane pump
- Flow rate: Open/380 mL/min, with GDZ -29 filter/80 mL/min
- Pressure connection: inner diameter phi 4 mm (t = 1) or inner diameter phi 6 mm (t = 1) tube
- Maximum load: -360 hPa
- Power supply: 006P9V battery (included for testing)
- Size: 106 x 67 x 30 mm
