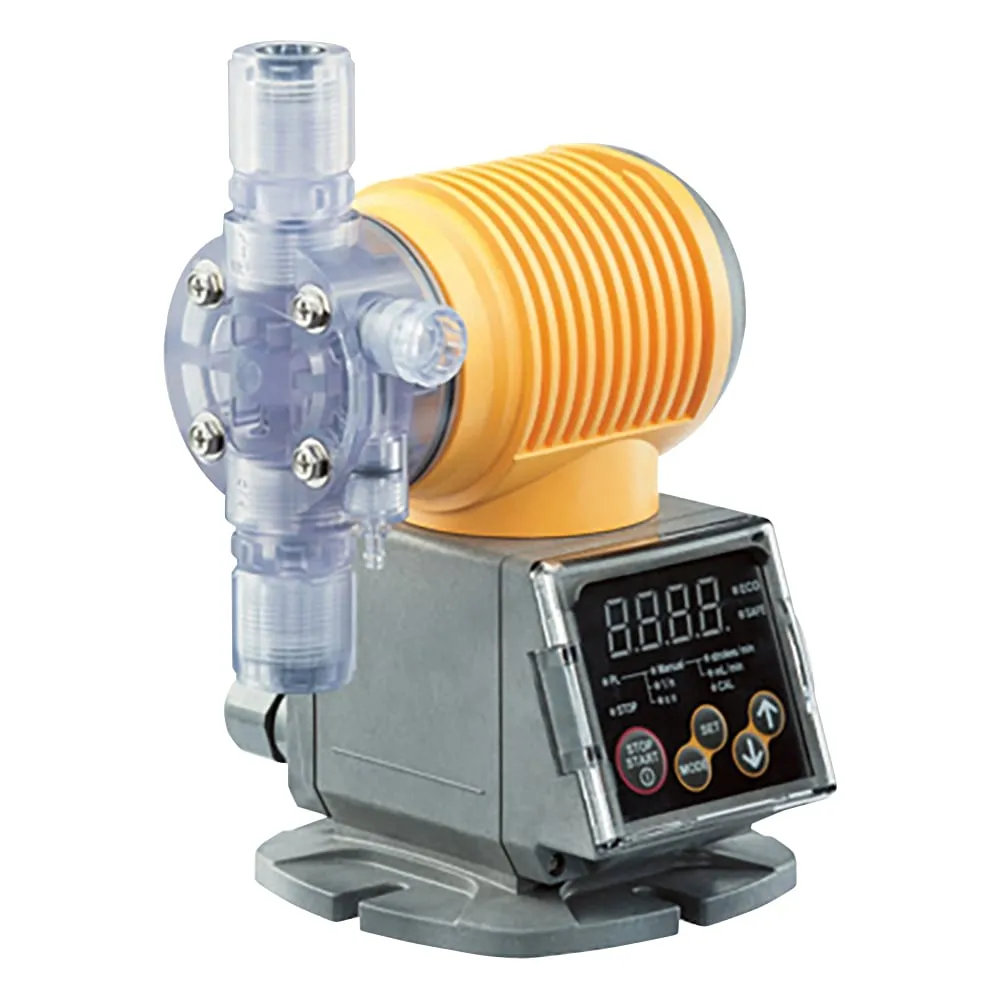

1-6615-13 Diaphragm Quantitative Pump 60mL/Min PW-60-VTCE-HWJ
Product Description
Product Model: 1-6615-13Product Brand: TACMINA CORPORAT […]
Contact Us
Product Details
Product Model: 1-6615-13
Product Brand: TACMINA CORPORATION
Features
- It is possible to set the injection amount by the number of strokes and the discharge amount.
- It is equipped with a SAFE mode that controls the force of the liquid feed and prevents the pressure from rising above the specified level, and an ECO mode that saves energy according to the discharge pressure.
- Pursuit of safety, energy efficiency and ease of ***.
- A free power supply that can be ***d with 100~240 V AC.
- Free installation direction with 3-way bobbing head.
Spec
- Model number: PW-60-VTCE-HWJ
- Discharge available viscosity: 50mPa・s (Max)
- Maximum inhalation head: 1.5m (at room temperature, with freshwater)
- Available liquid temperature: 0 - 40℃
- Display: High-brightness LED
- Function: Pulse proportional/external stop control, alarm output
- Liquid junction material Pump head, fitting/PVC (vinyl chloride resin), Diaphragm/PTFE (poly tetrafluoroethylene), Check ball/ceramic, Valve seat, O-ring/ethylene propylene rubber
- Power supply: AC 100 - 240V, 50/60Hz
- Size: 147.0 x 150.5 x 216.0mm
- Weight: 1.8kg
- Dustproof, waterproof: Equivalent to IP65
- Maximum discharge flow rate: 60mL/min
- Maximum discharge pressure: 1.0MPa
- Connection port size: φ6 x 11mm
- Accessories: PVC (vinyl chloride resin) blade hose (3m), Air releasing soft PVC (vinyl chloride resin) hose (φ4 x φ6mm, 1m), Siphon stopper check valve, Foot valve, Pump mounting bolt, nut (M5 x 30) x 2
- *Power cord, outlet plug are not included.
- Solenoid drive
