Features

• Fixed Nuts, Washers, Gaskets
• Do not operate these LED indicators without using an appropriate series resistor or other current limiting device.

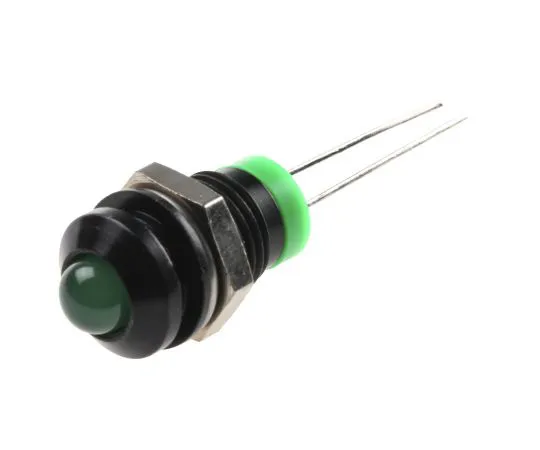

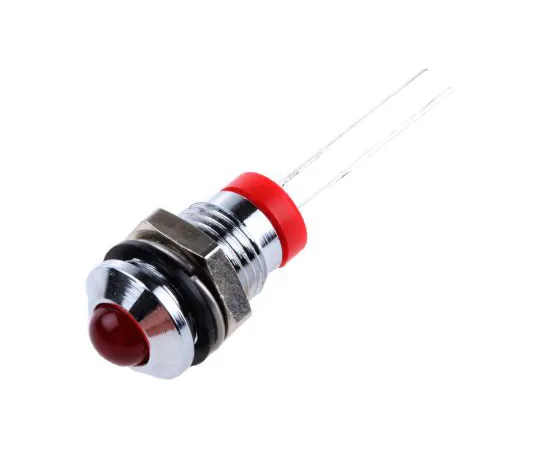

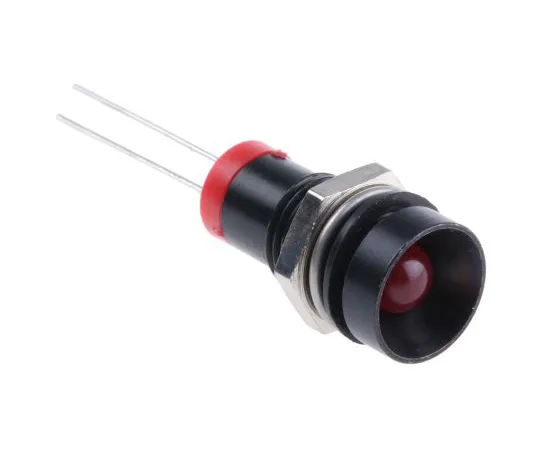

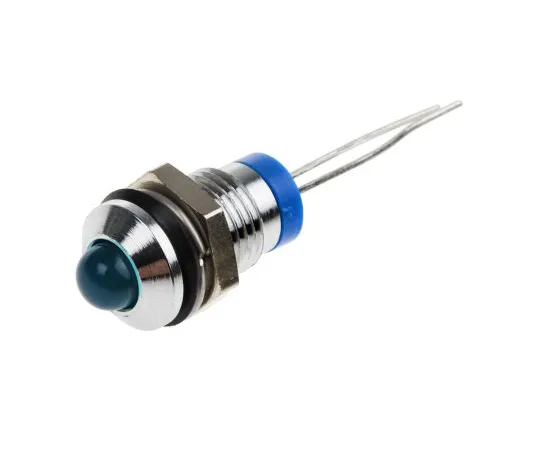

• LED Indicator, 8 mm Mounting
• The RS Pro 8 mm panel mounting indicator attaches to the front of the panel and provides IP67 grade sealing. Protrusive and embedded bezel types are available. The RS Pro indicator features a 5mm diffusion epoxy lens and a glossy satin or black chrome brass housing.
• Features and Benefits: 5mm color diffusion epoxy lens.
• Glossy satin chrome or black chrome brass housing.
• IP67 rating (front panel).
• Embedded or protruding bezel type.
• Solder terminal connection.
• Mounting hole size: 8 mm diameter.
• Operating temperature: -55→+70°C.
• RS brand indicator suitable for panel construction and maintenance.
