Features

• Description

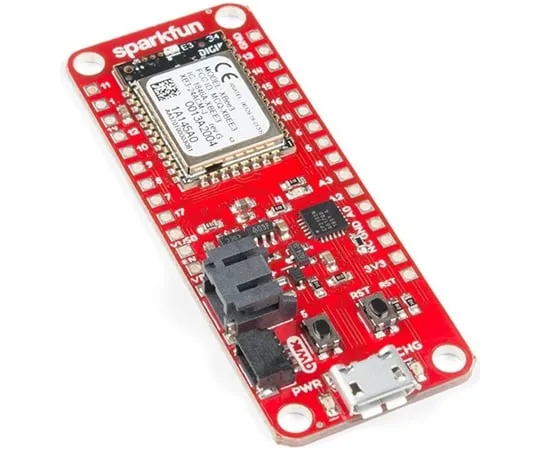

• The XBee3 Thing Plus is an ultra-capable and easy way for getting into wireless device development. The combination of XBee and Qwiic in a space-conscious design represents a much-needed update to our XBee offering. With 20 I/O pins and Lithium-Polymer Ion battery management, the XBee3 Thing Plus has all the basics for quickly prototyping or developing a connected device such as a remote sensor. The Qwiic connector and JST connector for the battery make for a solder-less option when working with the board which shortens setup time.
• The new XBee3 Micro Module provides the classic, near plug and play 802.15.4 2.4GHz wireless connection(Zigbee 3.0 Protocol)that makes it so desirable, but with a new addition of being programmable with MicroPython(32KB of memory available for it). RF data rates up to 250Kbps and 200 ft indoor ranges and up to 4000 ft line-of-sight outdoor range. Communicating with/Configuring the module happens via an AT Command set or the Digi API, X-CTU, both locally or over-the-air. There's even a mobile version of X-CTU now; Digi XBee®Mobile.
• Note:This variation ***s a chip antenna and is not compatible with external antennas.
• Get Started With the SparkFun XBee3 Thing Plus Guide
• Features
• XBee3 Micro Module
• Silicon Labs EFR32MG SoC
• 250Kbps RF, 1Mbps Serial data rates
• Indoor/Urban range up to 200 ft(60 m)
• Outdoor/RF Line of Sight range up to 4000 ft(1200 m)
• +8 dBm transmit power
• -103 dBm receiver sensitivity
• UART, I2C, SPI Interfaces(SPI currently not available at this time, but broken out on the board)
• ISM 2.4GHz Frequency Band(802.15.4)
• 1MB of memory, 128KB RAM(32KB available for MicroPython)
• 20 GPIO Pins
• Configurable via X-CTU or AT Command set via both USB and Wirelessly(second XBee 3 device required for wireless configuration unless you're using the mobile app)
• Qwiic Compatible
• On-board charging circuit and connector for 3.3v Lithium Polymer Ion Batteries(see related products for compatible batteries)
• 2.6VDC - 3.6VDC supply voltage
• On-board Chip Antenna
