automaticdiluter

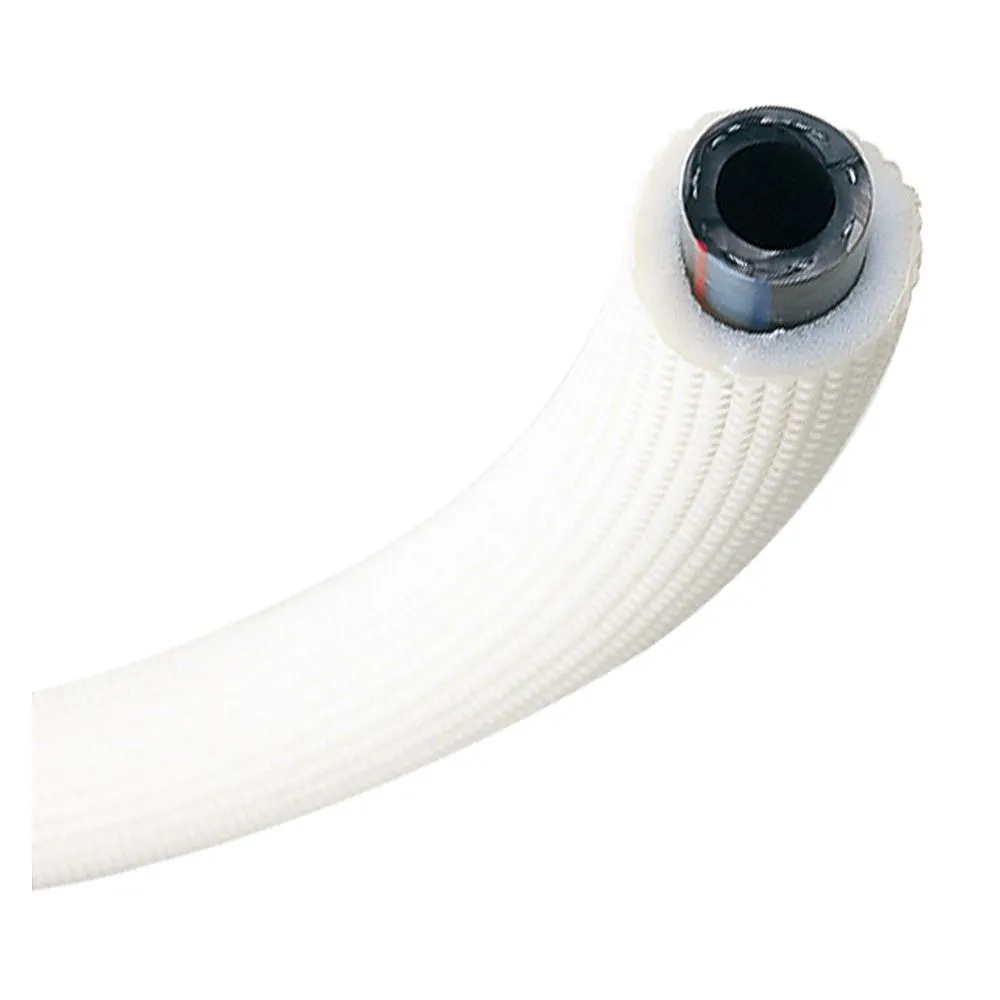

65-0877-23 Cooling Water Supply and Drainage Hybrid Toyo Drop Hose HTD-12-25
Product Description
Product Model: 65-0877-23Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0877-23
Product Brand: TOYOX CO., LTD.
Features
- "Main Application": Plant Piping and Mechanical Piping for Cooling Water Pressure Delivery
- "Hose for Dew Prevention": Pressure Resistant Blade Hose for Cooling Water with Heat Insulation Coated on the Hose Shell
- "Shape Retaining": Suited to Special Structure Equipment Piping and Machine Built-In which Hose is Stronger than General Blade Hose
- "Flexibility": Soft and Easy to Pipe
- "Compliance with Standards": RoHS2 Compliant (as of October 2021)
Spec
- Inner diameter x Outer diameter x Insulation outer diameter (mm): 12 x 18 x 26
- Pressure (Mpa): 0 to 1.2 (23 °C), 0 to 0.8 (50 °C)
- Operating temperature range: -5 to 60 °C
- Length: 25 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 50 mm
